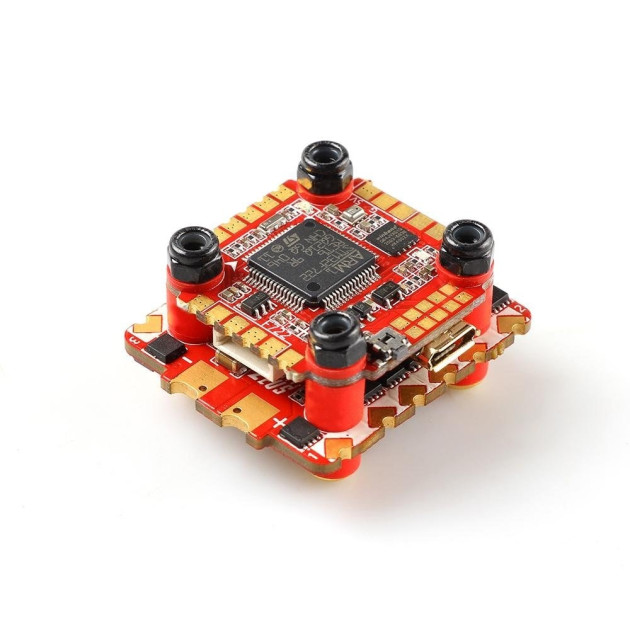

HGLRC Zeus F728 (F7 + 28A BLS stack)

In Stock
€ 106,90

The HGLRC Zeus F728 is a combination of a Zeus F722 mini  flight controller and a Zeus 28A ESCs. The stack is especially suitable for 3-4" drones and 5" ultralights.

The flight controller meets all the requirements of a modern board such as an F7 processor, large solder pads, a connector for connecting a DJI FPV or 8M memory for a black box. The ESC uses the BlHeli_S firmware. Its main advantage is a protective TVS diode, current sensor and large solder pads for easier installation.
Wiring diagram here

Key Features

  • Input voltage: 3-6S
  • Mounting holes: 20x20mm M3
  • BEC: 5V@3A, 9V@2A
  • Blackbox: 8MB
  • Procesor: STM32F722
  • Gyro: BMI270
  • Barometr: DPS310
  • Current: 28A
  • BF Target: HGLRCF722
  • ESC firmware: BlHeli_S

Package Includes

  • 1x FC
  • 1x ESC
  • 1x Set of accessories
