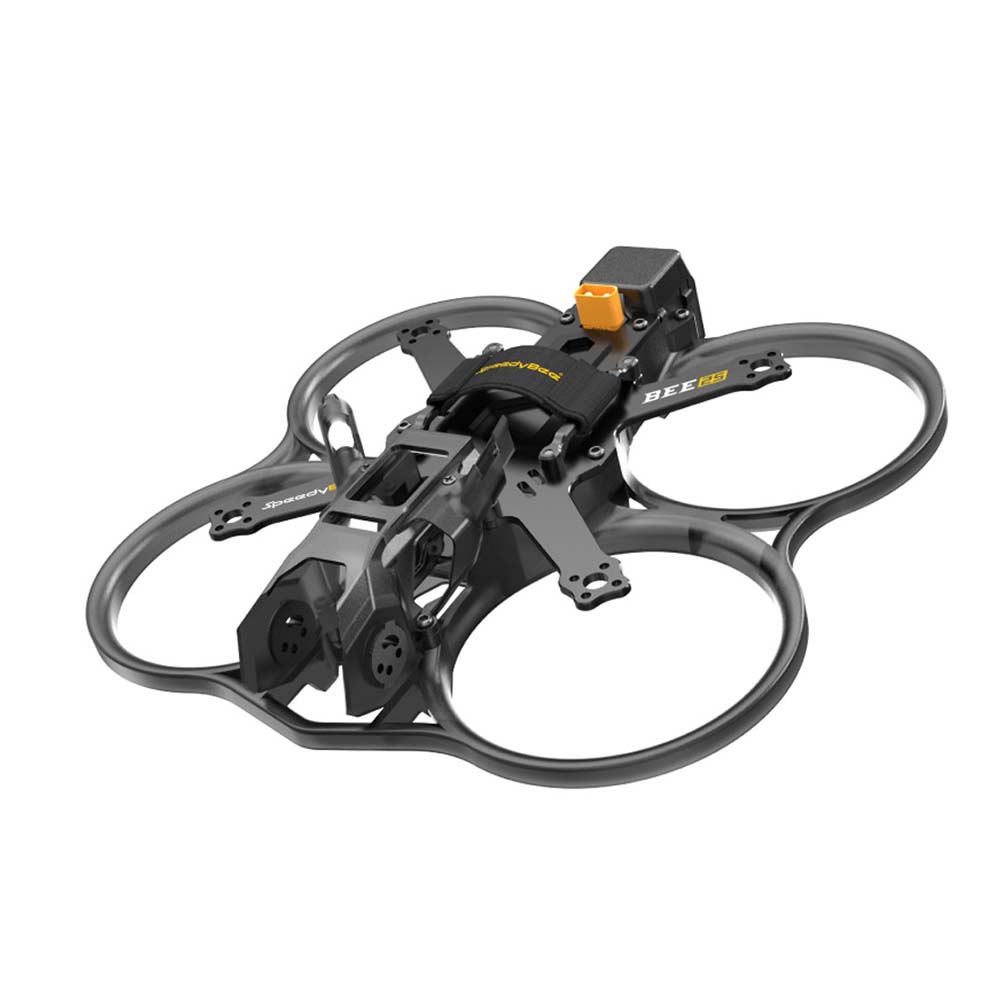

SpeedyBee Bee25 is a frame for building a small 2.5" Cinewhoop drone. The frame includes an external USB module that makes the USB-C port for flight controller configuration easily accessible at all times. It consists of a main 2mm carbon plate, a plastic prop guard, and a plastic front section that houses the FPV camera and video transmitter. The drone can be built with both analog and digital video systems, including the DJI O3 unit. It is designed for use with AIO boards featuring 25.5x25.5mm mounting holes. The available internal height is 18mm. The frame weighs approximately 68 grams.
Key Features
- Diagonal motor distance: 120mm
- Carbon thickness: 2mm
- FPV camera size: 19/20mm
- Height for stack: 18mm
- Mounting holes for stack: 25.5x25.5mm
- Mounting holes for motors: 9mm M2
- Propeller size: 2.5"
- Weight: approx. 68g
User Guides
Package Includes
- 1x Frame
- 1x Screw Set
- 1x Cable Set
- 1x External USB-C Module
- 1x Lipo Strap
- 1x Battery Rubber Strap
- 2x Linear Antenna
- 1x Battery Pad
