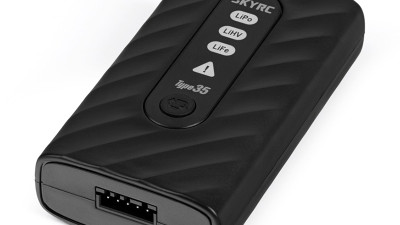

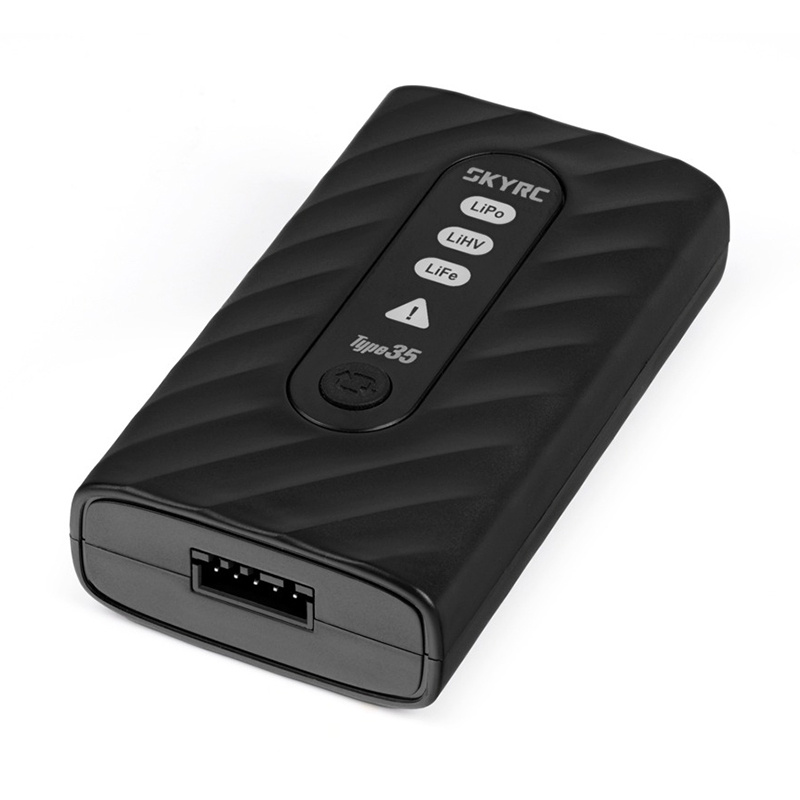

SkyRC Type35 35W 2-4S

SkyRC Type35 is a compact pocket charger designed for charging 2-4S LiPo, LiHV, and LiFe batteries. The charger is powered via a USB-C connector with PD3.0 protocol support. The input voltage ranges from 9-20V, where the input voltage must be higher than the maximum voltage of the battery being charged. The charger has a maximum power of 35W and a charging current of up to 2A with a balancing current of 300mA. Batteries connect via a JST-XH balance connector, eliminating the need for additional charging cables.

The current status and any errors, such as low input voltage, thermal protection, or large differences in cell voltages, are indicated by a three-color LED indicator.

The charger measures 84x48x22mm and weighs 53g, making it suitable for smaller models and users who prefer simplicity and mobility. For operation in the field, the charger can be powered by a standard power bank that meets the PD3.0 standard.
