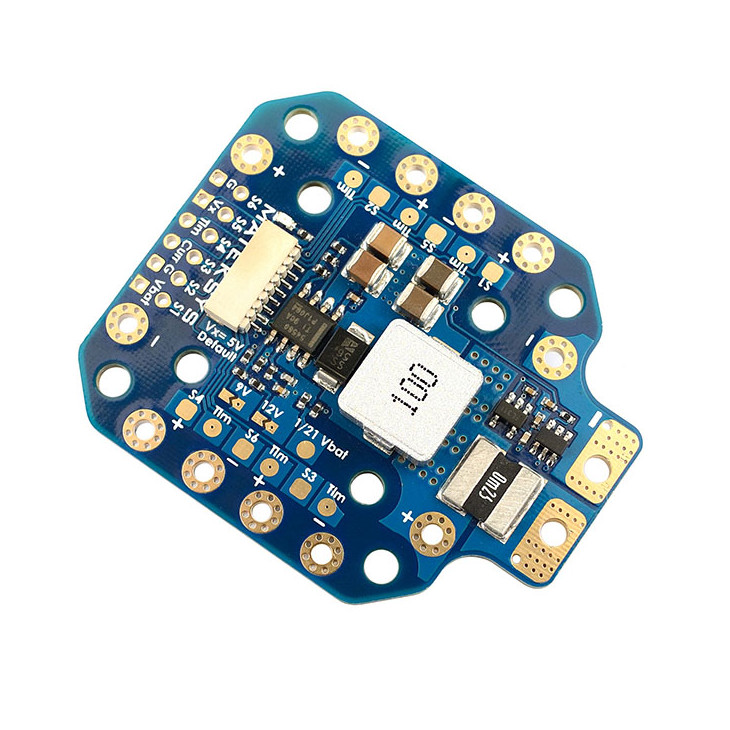

Matek PDB-HEX 12S

Matek PDB-HEX 12S is a power distribution board designed for large and powerful drones that use separate ESCs. With six outputs, it is ideal for hexacopters. It supports 2–12S batteries and handles continuous current up to 140A (peak 264A). The PDB features a current sensor rated up to 264A, a 5V/5A BEC, an adjustable 5/9/12V 4A BEC, and a voltage divider. It includes standard 20×20mm and 30.5×30.5mm M3 mounting holes. An 8-pin connector is available for easy connection to the flight controller.
