HGLRC Zeus F745 V2 (F7 + 45A BLS stack)

€ 101,09
115.69 -12% OFF!

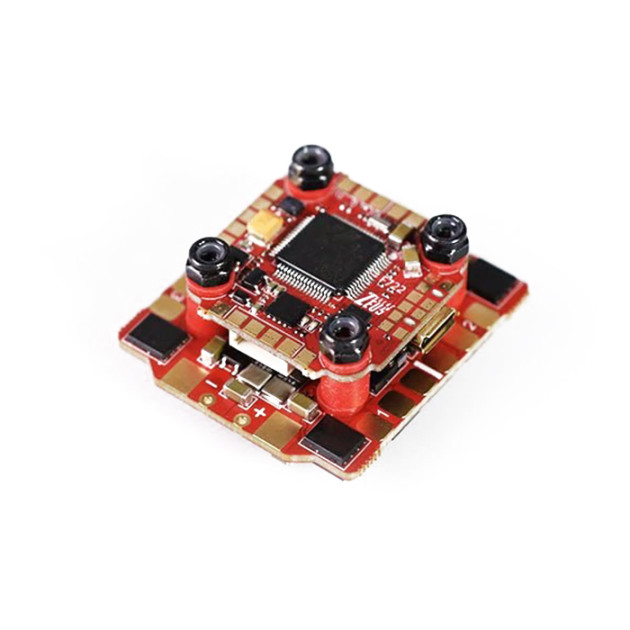

Combination of Zeus F722  mini flight controller with F7 processor and powerful Zeus 45A  ESC with BlHeli_S. The powerful stack can be used especially on 5" drones. The FC has memory for blackbox, 5V and 9V BEC, barometer, connector for DJI FPV, but also OSD for analog setups. The FC is connected to the ESC by a cable, which simplifies construction and increases mechanical resistance.

You will find the wiring diagram here.

Key Features

  • Input voltage: 3-6S
  • Mounting holes: 20x20mm M3
  • BEC: 5V@3A, 9V@2A
  • Blackbox: 8MB
  • Procesor: STM32F722
  • Gyro: BMI270
  • Barometr: DPS310
  • Weight: 20g
  • Current: 45A
  • BF Target: HGLRCF722
  • ESC firmware: BlHeli_S

Package Includes

  • 1x Flight controller
  • 1x ESC
  • 1x Accessory set
