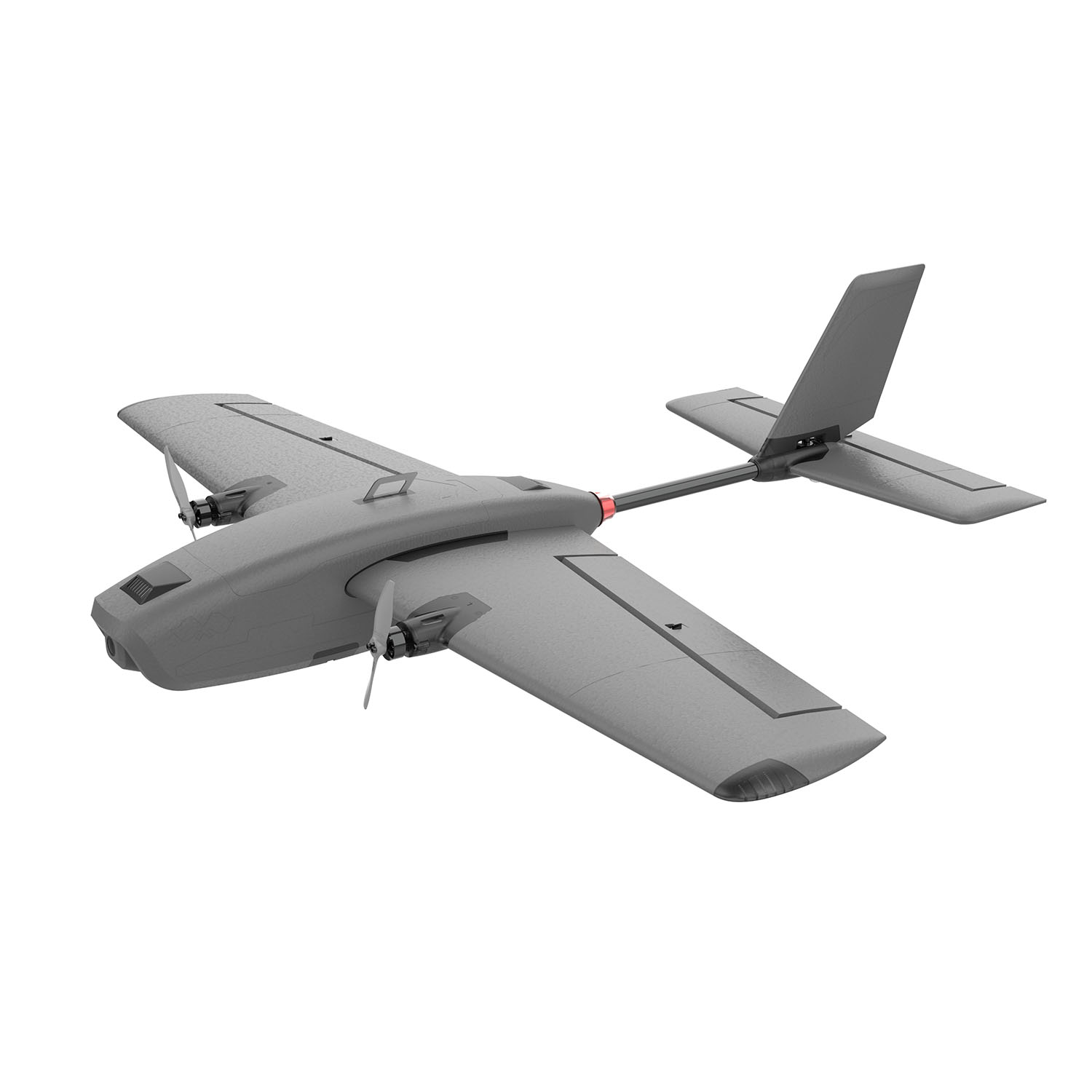

Heewing T1-S Ranger PNP

Heewing T1-S Ranger PNP is a twin-motor FPV airplane with a 790mm wingspan, suitable for recreational flying. It follows the popular T1 Ranger model, retaining its compact dimensions and quick assembly, while offering longer wings, a roomier fuselage and a range of design improvements. The package includes a foam carrying case that fits the disassembled airplane including accessories for easy transport.

Compared to the T1, the wingspan has been increased to 790mm and the fuselage length extended from 355mm to 385mm. This provides more space for the battery and electronics. The aileron linkages run along the top of the wing, so the servo arms are protected from impacts during belly landings. The rear section features a quick-release design: during assembly, the vertical stabilizer is installed first, followed by the tail boom; disassembly is done in the reverse order. The wings slide onto a carbon rod and snap into the fuselage, while the wiring connects via a quick connector.

Power is provided by two pre-installed 1406 (3150KV) motors with 3830 propellers, a Heewing 20A ESC with BLHeli_S firmware, and 4.3g micro servos. The power distribution board includes a 5V/3A output for the RC receiver and other electronics. The manufacturer recommends a 4S battery, with takeoff weight ranging from 600 to 950 grams depending on the setup. The center of gravity is located at the protrusion on the underside below the wing and can be adjusted by moving the battery, for which a mounting plate is included. Before the first flight, we recommend calibrating the ESC throttle range.

The model is PNP – motors, ESC, servos and power distribution board are already installed. RC receiver, transmitter, flight controller, FPV video system and battery are not included. Disconnect the power before removing or installing the wings.
