Axisflying Manta5 V2 SE Squashed X

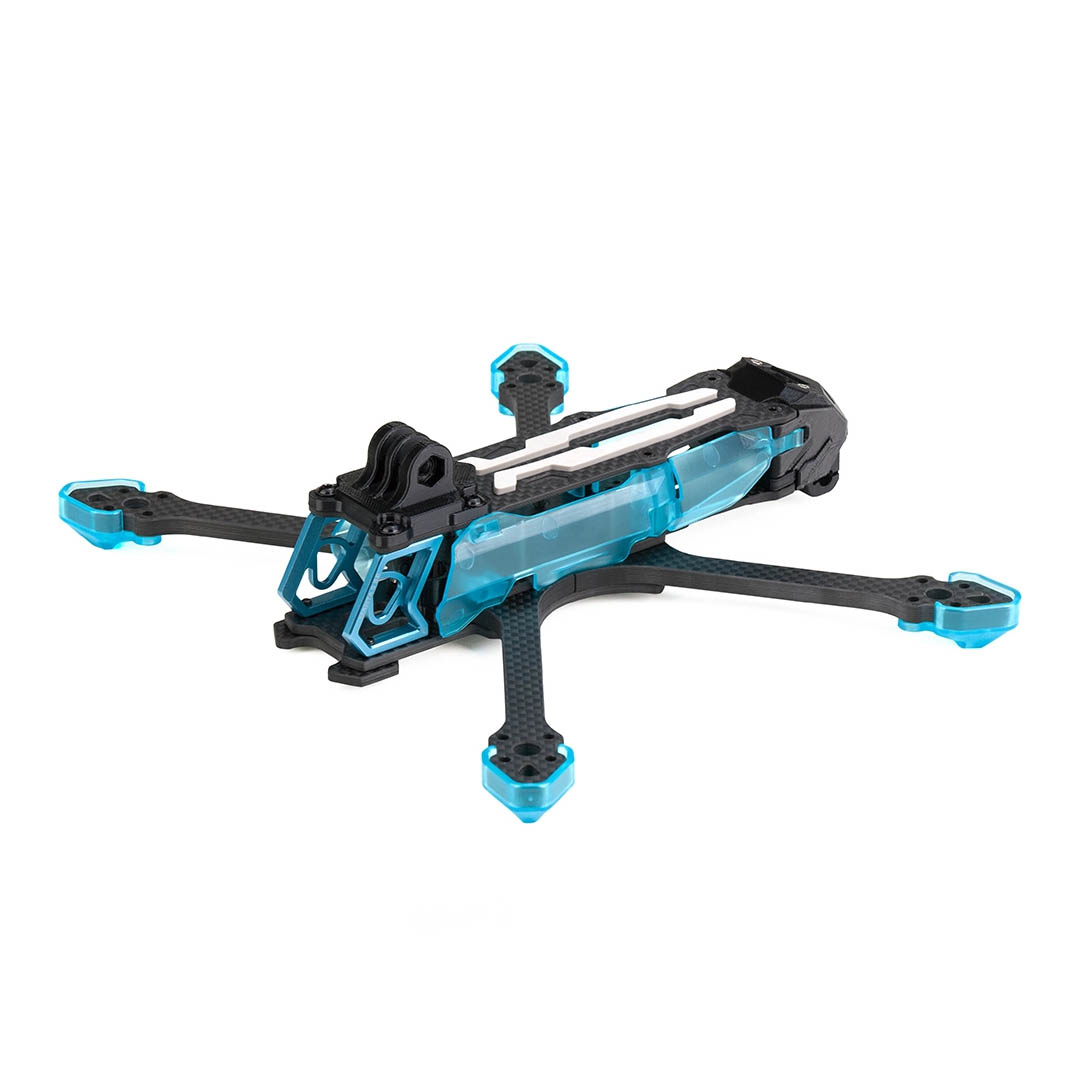

Axisflying Manta5 V2 SE is a freestyle 5" frame suitable for building a drone with analog or digital video transmission including DJI O4 Pro. The frame has a symmetrical configuration Squashed X which is suitable for freestyle flying. The camera is mounted in aluminum side plates via rubber inserts that help dampen vibrations transmitted from the frame. For high durability, the arms are milled from 5.5 mm thick top-notch carbon T700. In the middle of the frame, there is space for placing stacks with mounting holes 20x20 mm and 30.5x30.5 mm M3. At the rear of the frame, there is space for a video transmitter. There are M2 mounting holes with a pitch of 20x20 mm and 25.5x25.5 mm. Vertical space available is 20 mm. In the second version, the Manta5 received plastic covers that protect the stack and other electronics from dirt. The XT60 connector is also firmly mounted at the rear of the frame.
