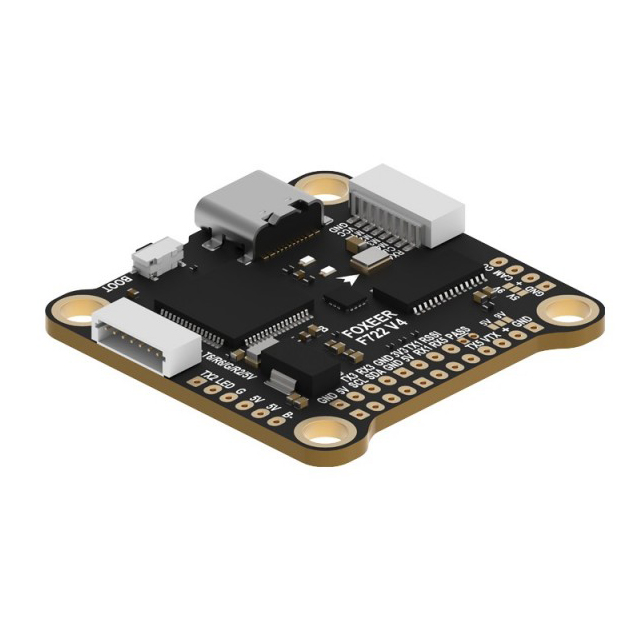

Foxeer F722 V4 is a flight controller designed for freestyle and racing drones. It is powered by a high-performance F7 processor combined with the ICM-42688-P gyro. The board includes both 5V/3A and 10V/3A BECs, a DPS310 barometer for altitude measurement, and 16MB of onboard flash memory for blackbox logging. Dedicated I2C pads are available for compass connection. As expected, it features OSD for analog video and supports all digital video transmitters, including a dedicated connector for DJI O4. The flight controller supports input from 3–6S LiPo batteries.
This is an original, official product from the manufacturer. The product is supplied in unbranded packaging that does not contain any logos or brand graphics. The product itself is not affected in any way and is fully authentic.
Key Features
- CPU: STM32F722RET6
- Gyro: ICM42688P
- Power supply: 4-6S Lipo
- BEC: 5V/3A 10V/3A
- Blackbox: 16MB
- Number of UARTs: 6
- Barometer: DPS310
- Size: 37x37mm
- Mounting holes: 30.5x30.5mm M4 (M3 with softmount)
- Weight: 8g
Package Includes
- 1x Flight controller
- 1x Softmount Kit
