Diatone Mamba MK4 F722 + F65 128K BL32 Mini

Discontinued
€ 146,89

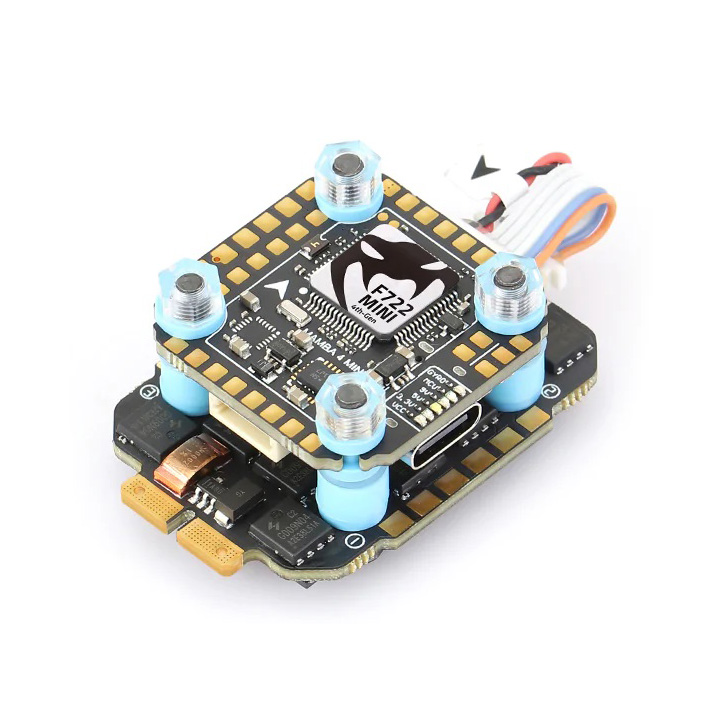

Mamba MK4 F722 + F65 128K BL32 Mini is a powerful stack for racing and freestyle 5" copters.


The Mamba MK4 F722 Mini FC belongs to the best that Diatone can offer. The board uses an STM32F722 processor, has 16MB of blackbox memory, a barometer, 6 UARTs, an I2C port for connecting a magnetometer, 8 outputs for motors, a TVS diode, a 5V and a 9V BEC, where the 9V BEC can also be switched with a DJI FPV connector. Compared to other boards, the Mamba MK4 series has large soldering surfaces. This makes the construction and maintenance of the drone a little easier.

The stack is complemented by a powerful F65 ESC, which uses BlHeli_32 firmware and supports a frequency of up to 128KH, thus ensuring smooth and efficient operation of the motors even at high speeds. The ESC supports telemetry and includes a current sensor. Even with the small size of the regulator, large MOSFETs are used. The maximum current of the ESC is 65A per channel, thanks to which it can easily handle all classic 2207 motors used on 5" copters. When using a 6S battery, a capacitor must be connected.

Key Features

  • Input voltage: 3-6S
  • Processor: STM32F722
  • OSD: AT7456E
  • Blackbox: 16MB
  • IMU: ICM42688P
  • Barometer: SPL06
  • Number of UARTs: 6
  • I2C: Yes
  • Number of outputs for motors: 8
  • BEC: 5V@2.5A, 9V@2A (switchable)
  • TVS Diode
  • Mounting holes: 20x20mm M3/M2

Package Includes

  • 1x FC
  • 1x ESC
  • 1x Set of softmounts
  • 1x Set of cables
  • 1x XT60 with cable
  • 1x Capacitor
