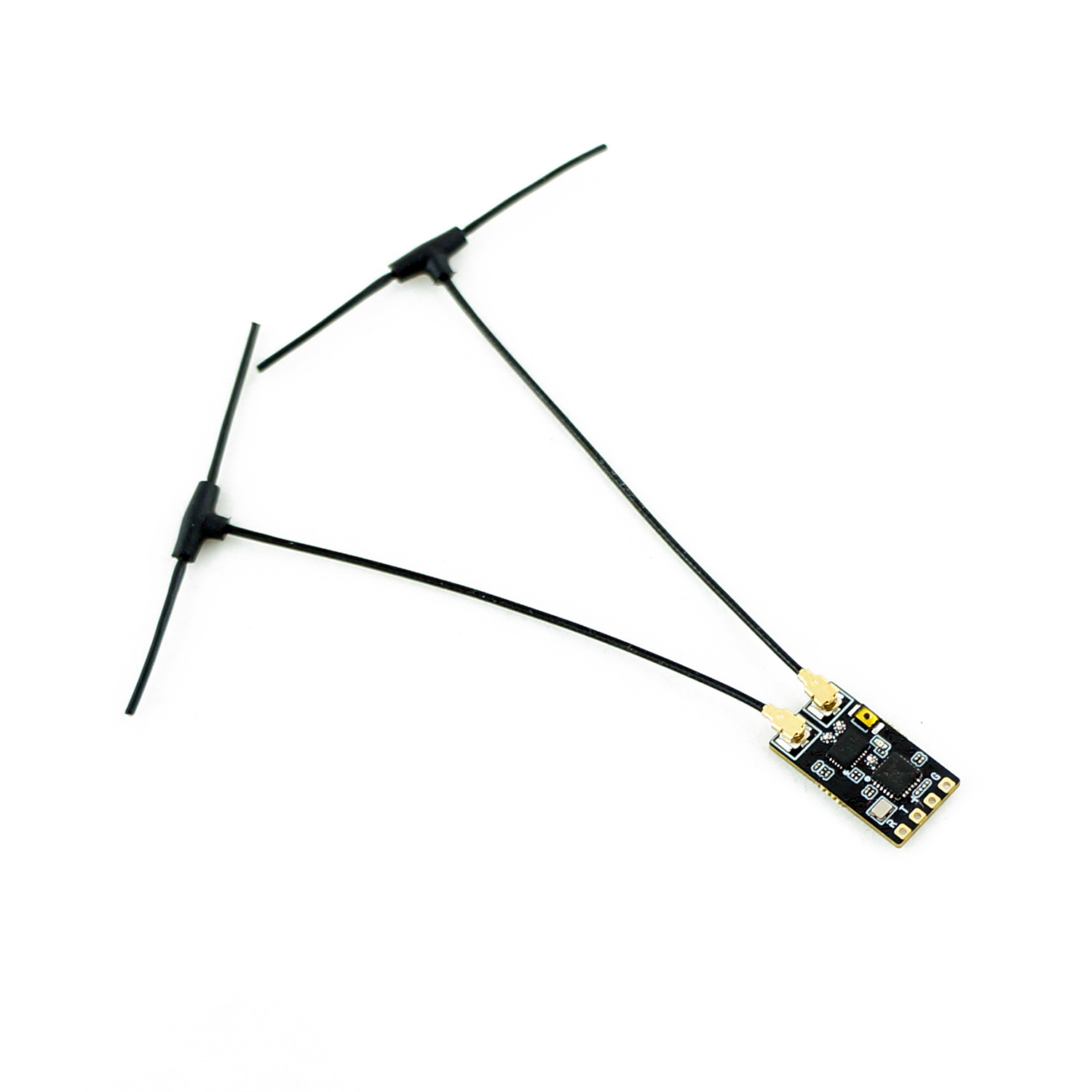

Skystars Nano Dual Antenna is a small receiver for ExpressLRS at 2.4GHz. The receiver has 2 antennas for diversity reception. It will be especially appreciated by those who are looking for a reliable RC link over longer distances. The antennas are connected to the IPEX1 connector and can thus be easily swapped.
Key Features
- Input voltage: 5V
- Diverse antenna
- Size: 20x11mm
- Weight: 0.8g (without antennas), 2g (including antennas)
- MCU: ESP8285
- RF chip: SX1280
- PA/LNA: SE2431L
- Telemetry power: 100mW
Package Includes
- 1x Receiver
- 1x Heatshrink
- 1x Cable Set
