The iFlight ELRS receiver for 2.4 GHz is based on ExpressLRS – an advanced open-source RC system offering long range, low latency, high refresh rate, and many useful features. Learn more about ELRS here.

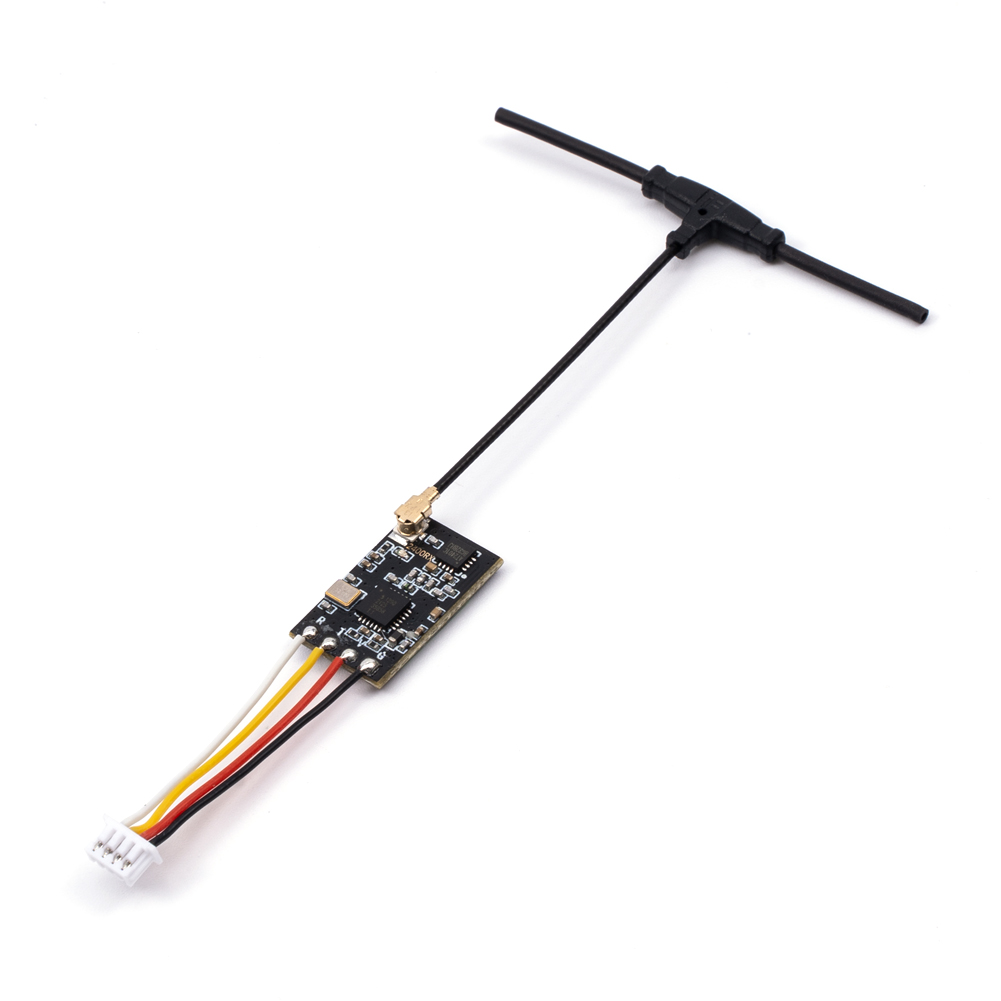

The iFlight ELRS receiver features a durable T-style dipole antenna with a cable length of either 40 mm or 70 mm. It includes a SH1.25 connector for easy plug-in connection to flight controllers. Solder pads are also available for those who prefer manual wiring. The antenna is connected via an IPEX1 connector. Telemetry output power is 20 dBm (100 mW). With its compact size of 12 × 19.5 mm and ultra-light weight of 1.2 g, this receiver is ideal for all types of drones.
Key Features
- Antenna connector: IPEX
- Firmware: ExpressLRS iFlight 2400RX(2.4G)
- Frequency range: 2.4GHz ISM
- Telemetry power: 20dbm
- Size: 12x19,5mm
- Voltage: 5V
- Protocol: CRSF
- Weight: 1,2g
- Antenna: T dipol - 40/70mm
Package Includes
- 1x Receiver
- 1x Antenna
- 2x Cable
