AlfaRC Mikro 4"

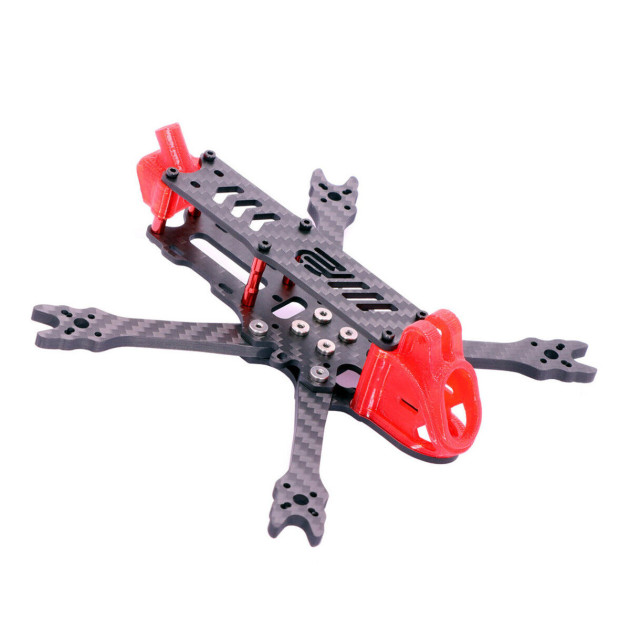

The AlfaRC Mikro 4" is a frame for building a freestyle or small long range copter. The Mikro 4" is suitable for analog and digital transmission. The arms are made of durable 4mm carbon and can withstand many drops. The 3D printed cabine for the nano FPV camera has an integrated holder for easy attachment of an external HD camera. The frame can be used with motors with both 9mm and 12mm holes. The mounting holes for the stack are 20x20mm and 25.5x25.5mm M2. In the back part there is a place for other boards with a size of 20x20mm (for example Caddx Vista). The weight of the frame including 3D printing is 65 grams. Thanks to the 3D printed front, the frame can be modified to support the DJI O3 transmission as well.
