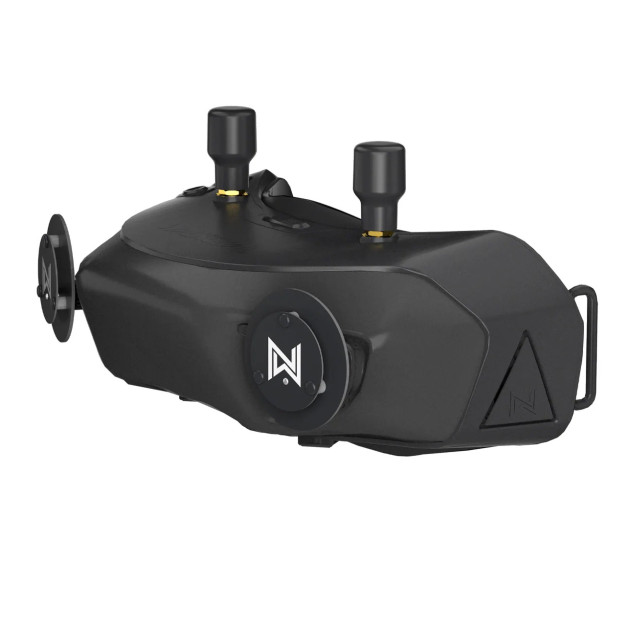

Walksnail Avatar HD Goggles

Discontinued
€ 633,49

Walksnail Avatar HD Goggles are high-end FPV goggles designed for digital transmission of the Walksnail Avatar image. The glasses were developed in cooperation with the well-known Fatshark. Walksnail Avatar digital transmission enables video transmission in full HD (1080p) or HD (720p) quality with a low latency of even 22ms and a high refresh rate of 60/120fps and a data throughput of 25/50mbps. The image is displayed on two 0.49" displays with full HD 1080p resolution. Thanks to OLED technology, the image is vivid and contrasty. FOV 46° ensures a large and immersive image. The adjustable IPD 57-70mm and the possibility of setting diopters in the range take care of the sharpness of the image +2 to -6. Walksnail Avatar glasses have an integrated digital transmission receiver. The receiver has 4 RP-SMA connectors. The glasses already have two omnidirectional and two directional LHCP antennas in the base. The glasses have an adjustable fan to prevent fogging of the displays, an on/off button glasses. The image can be easily projected on the TV thanks to the HDMI output. The glasses are powered via a classic coaxial DC connector 5.5/2.1mm with a voltage of 7-21V (2-5S). Walksnail glasses have a slot for an SD card of up to 256GB, on which can record the received image. The Walksnail Avatar system supports the so-called Canvas mode, in which a classic full-scale OSD can be drawn into the image, as you are used to from the analog world. It is also worth mentioning the ranging mode, where the glasses estimate the drone agility. So you always have an overview of how far you are, even without the need for a GPS module.

Key Features

  • Frequency range: 5725-5850GHz
  • Transmit power: FCC:<30dBm; CE: <14dBm
  • SD Card: Micro SD - up to 256GB
  • IPD Range: 58-70mm
  • Diopters: +2 to -6
  • FOV: 46°
  • Display: 0.49" OLED 1920x1080px 100Hz
  • HDMI output: via USB-C connector
  • Power supply: DC5.5x2.1mm 7-21V (2-5S)
  • Connector: RP-SMA
  • Polarization: LHCP

Package Includes

  • 1x Goggles
  • 1x Case
  • 1x XT60 cable
  • 2x Omnidirectional antenna
  • 2x Directional antenna
  • 1x Strap
  • 1x Cleaning wipe
