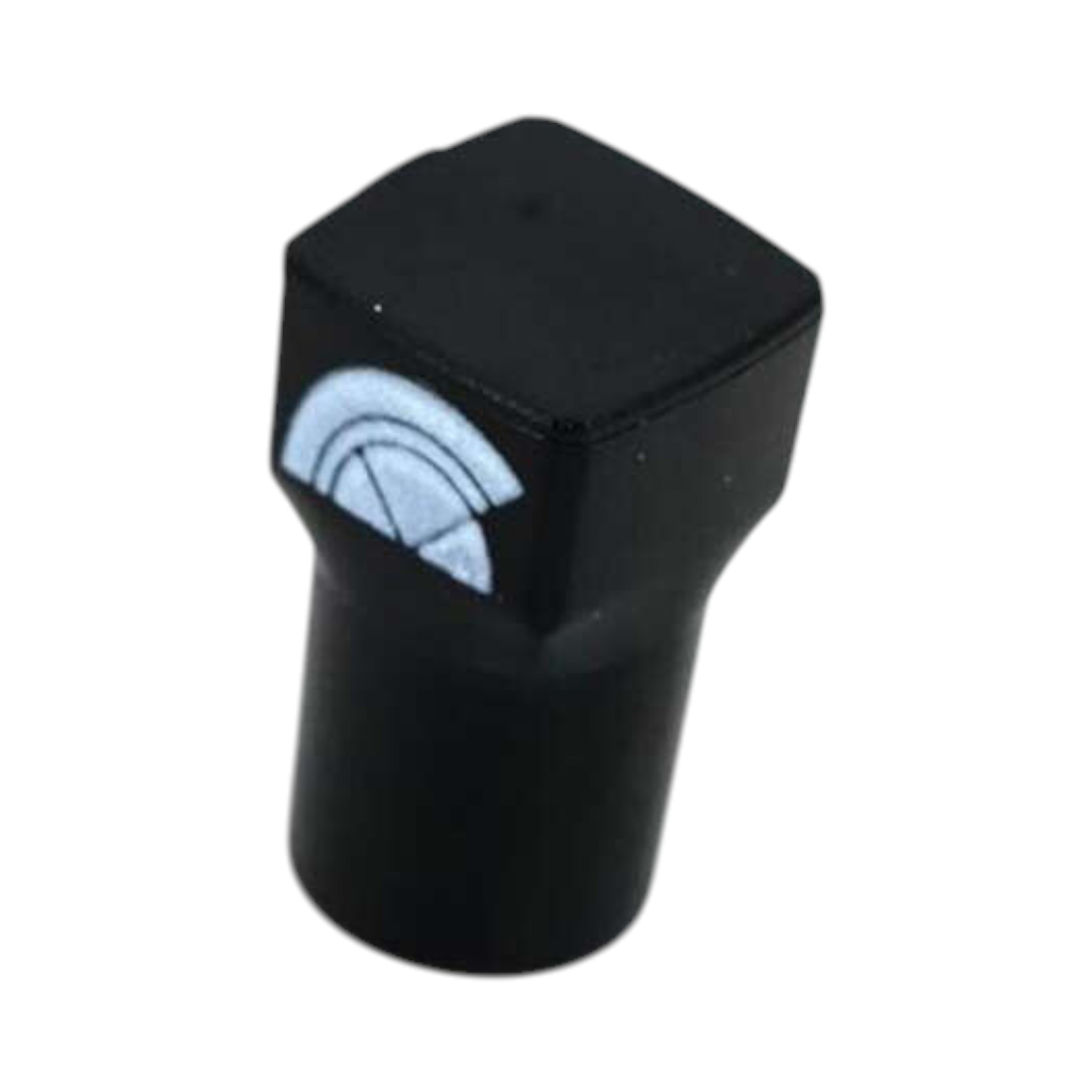

VAS Victory Stubby is a small omnidirectional circularly polarized antenna for the 5.8GHz band with a gain of 1.9dBic. It is available in LHCP with RP-SMA connector and RHCP with SMA connector variants. Victory Stubby is suitable for the receiving side on goggles.
The radiator consists of phase-driven elements derived from the Minion and Ion antennas, thanks to which the antenna achieves an axial ratio of 0.96. The axial ratio indicates how circular the radiated wave is; a value close to 1 means lower losses between transmitter and receiver and better suppression of reflections from terrain and obstacles. It operates in the 5550-6100MHz range, covering all commonly used FPV bands.
The housing is made of hard radio-wave-transparent plastic and protects the radiator during crashes. The antenna is manufactured in the USA and complies with NDAA, a U.S. standard for components deployed in the public sector.
Video Aerial Systems (VAS) is an American company focused on antenna development and manufacturing. It owns several of its own patents and their antennas rank among the absolute top.
Key Features
- Connector: SMA (RHCP) or RP-SMA (LHCP) (depending on variant)
- Polarization: RHCP or LHCP (depending on variant)
- Gain: 1.9dBic
- Axial ratio: 0.96
- Radiation pattern: omnidirectional
- Frequency range: 5550-6100MHz
- Length: 22mm
- Weight: 3.5g
Package Includes
- 1x Antenna
