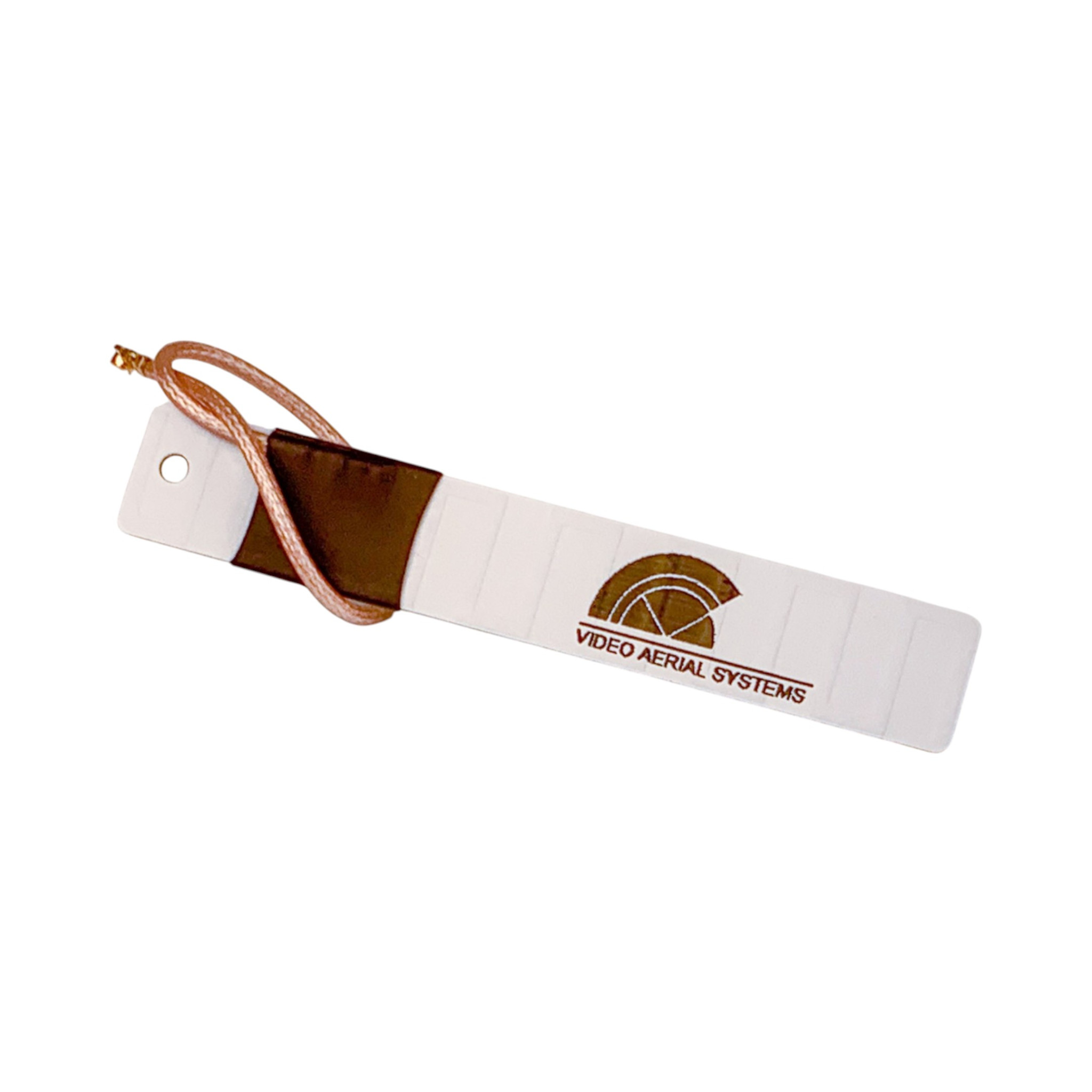

VAS Mini RX Antenna 868MHz - 180mm IPEX1
In Stock
€ 10,29
VAS Mini RX Antenna is a compact receiver antenna for RC systems in the European 868MHz band, such as TBS Crossfire or ExpressLRS 868.
The antenna has linear polarization and an omnidirectional radiation pattern. Gain is 2,34dBi, impedance is 50Ω and VSWR stays below 2 across the entire 860-890MHz range. The active section measures 76x13mm and the antenna weighs only 2,5g including the cable. It connects to the receiver via an IPEX1 connector, so it fits Crossfire Nano and Micro RX as well as standard ELRS receivers in the 868MHz band.
Key Features
- Connector: IPEX1
- Gain: 2,34dBi
- Polarization: Linear
- Radiation pattern: Omnidirectional
- Frequency: 868MHz
- VSWR: < 2
- Impedance: 50Ω
- Total antenna length: 180mm
- Cable length: 114mm
- Active section dimensions: 76x13mm
- Weight: 2,5g
Package Includes
- 1x Antenna
