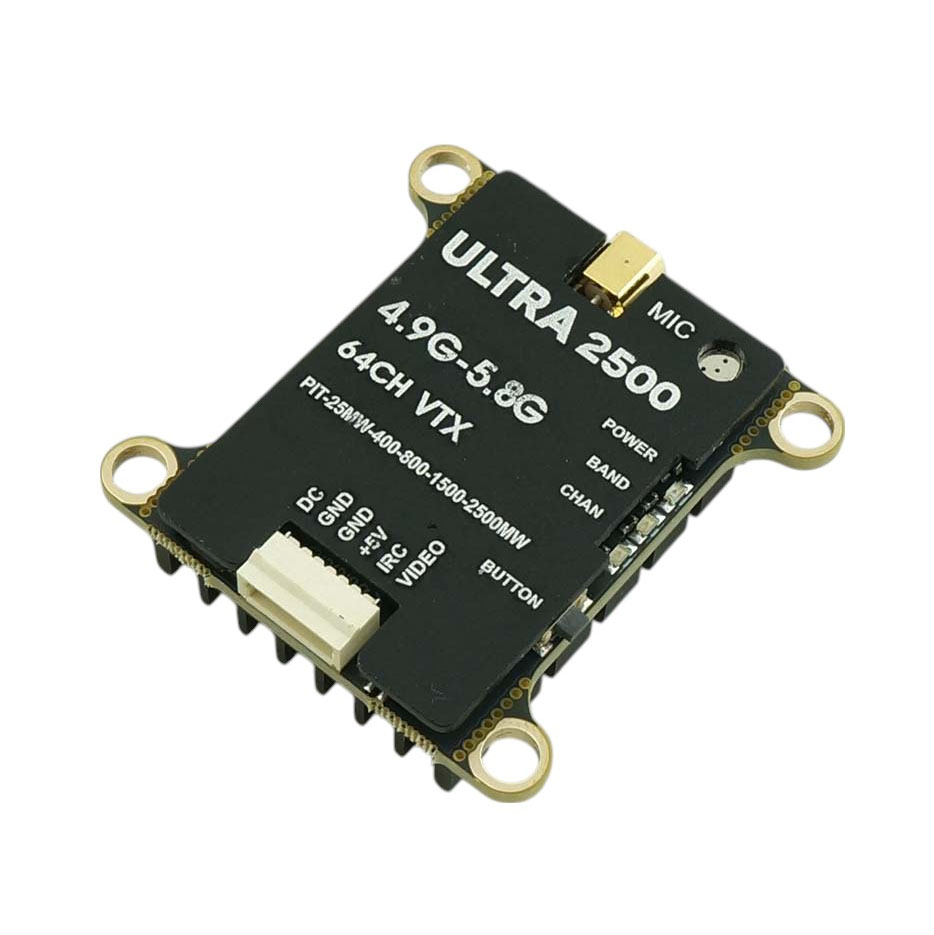

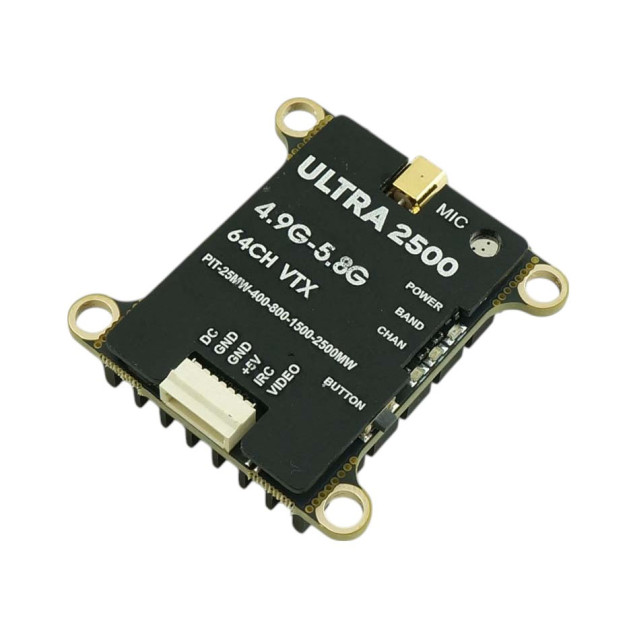

ULTRA2500 analog video transmitter is an affordable VTX designed for freestyle and long-range drones, offering a maximum output power of up to 2500mW. The transmitter supports broadcasting in X and L bands, covering the full range from 4.9 to 5.9GHz. It features an aluminum heatsink for effective heat dissipation. For easy installation into a drone frame, it offers 30.5x30.5mm mounting holes. The antenna connects via an MMCX connector. The VTX can be powered directly from a 2–8S battery. Configuration is done via a button or through the flight controller using the IRC Tramp protocol. The video transmitter includes a 5V output for powering a camera and a microphone for audio transmission.
Key Features
- Power supply: 2-8S Lipo (7-36V)
- Antenna connector: MMCX
- Protocol: IRC Tramp
- Output power: PIT/25/400/800/1500/2500mW
- BEC: 5V/0.6A
- Integrated microphone
- Number of channels: 64
- Size: 36.5x36.5x12mm
- Mounting holes: 30.5x30.5mm
- Weight: 15g
User Guides
Package Includes
- 1x Video Transmitter
- 1x MMCX-SMA Pigtail
- 1x Cable
