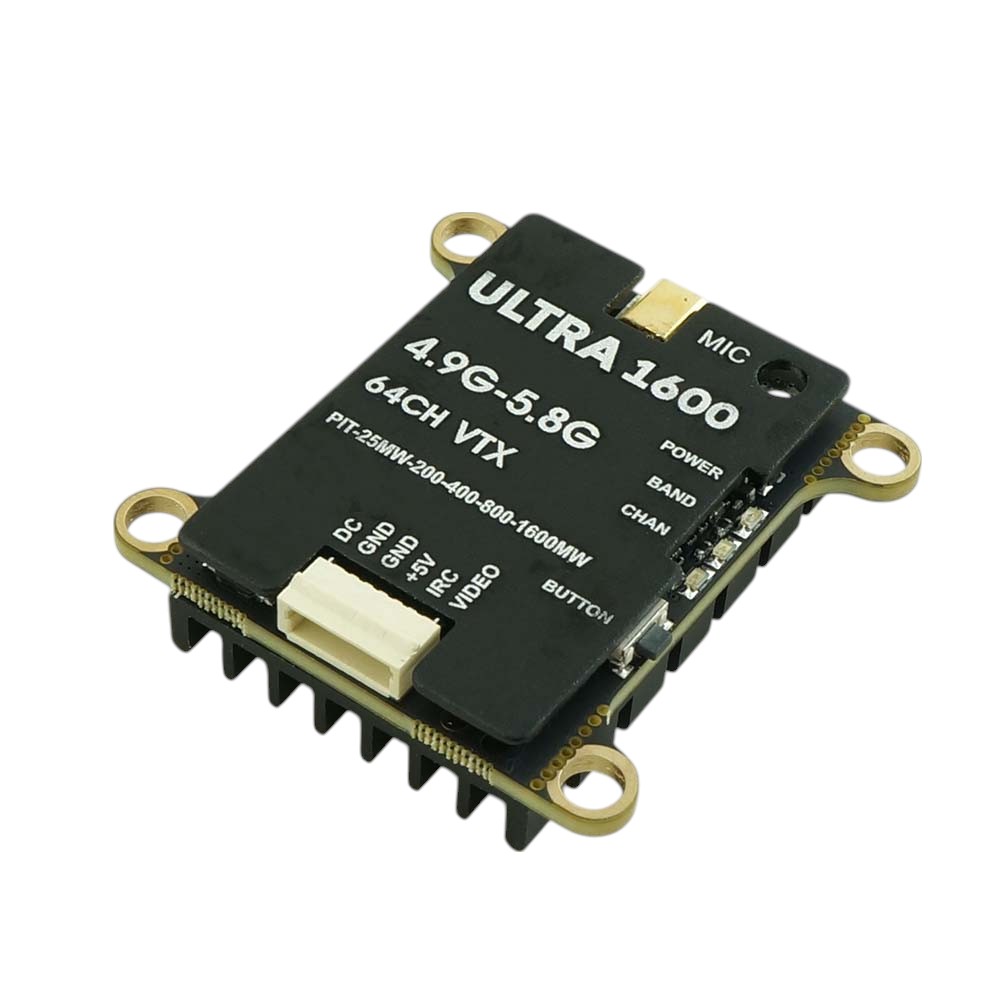

ULTRA1600 analog video transmitter is an affordable VTX designed for freestyle and long-range drones, offering a maximum output power of up to 1600mW. The transmitter supports broadcasting in X and L bands, covering the entire range from 4.9 to 5.9 GHz. It is equipped with an aluminum heatsink for efficient heat dissipation. For easy frame mounting, it features 30.5x30.5mm hole spacing. The antenna connects via an MMCX connector. The VTX can be powered directly from a 2-8S battery. Configuration is possible via a button or remotely using the IRC Tramp protocol. The transmitter also includes a 5V output for powering a camera and a microphone for audio transmission.
Key Features
- Power supply: 2-8S Lipo (7-36V)
- Antenna connector: MMCX
- Protocol: IRC Tramp
- Output power: PIT/25/400/800/1600mW
- BEC: 5V/0.6A
- Integrated microphone
- Number of channels: 64
- Size: 36.5x36.5x12mm
- Mounting holes: 30.5x30.5mm
- Weight: 15g
User Guides
Package Includes
- 1x Video Transmitter
- 1x MMCX-SMA Pigtail
- 1x Cable
