TuneRC Noodle AT32F435
In Stock
€ 34,89

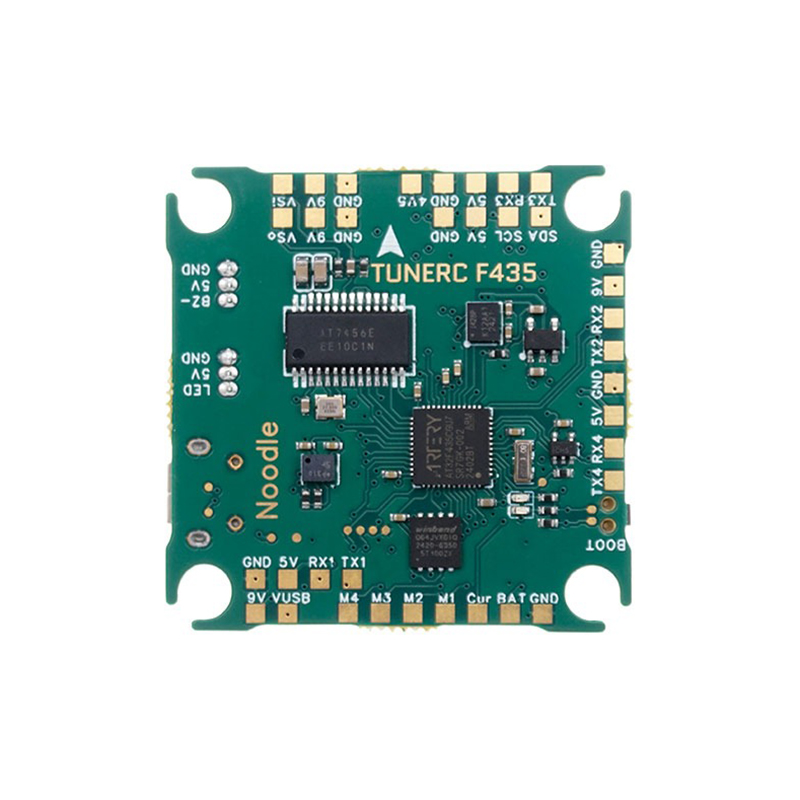

Noodle AT32F435 is an affordable flight controller suitable for racing and freestyle drones powered by 3-6S Lipo batteries. The core of the flight controller is the AT32F435 processor combined with the ICM42688P gyro. The board also features 8MB memory for blackbox, a barometer for altitude measurement, and 5V/1.5A and 9V/2A BEC. For connecting peripherals, there are 4 UART ports and an I2C bus.
The board has connectors on one side for easy solder-free assembly and solder pads on the other side for solder enthusiasts.
Key Features
- Input Voltage: 10.5-28V (3-6S)
- MCU: AT32F435CGU7
- Gyro: ICM-42688-P
- Barometer: DPS310
- OSD: AT7456E
- Blackbox Memory: 8MB
- BEC: 5V/1.5A, 9V/2A
- Number of Outputs: 4
- Number of UARTs: 4
- Number of I2C: 1
- Betaflight Target: TUNERCF435
- Mounting Holes: 30.5x30.5mm
- Size: 37x37mm
- Weight: 7.3g
User Guides
Package Includes
- 1x Flight Controller
- 1x Set of Soft Mounts
- 1x Set of Cables
