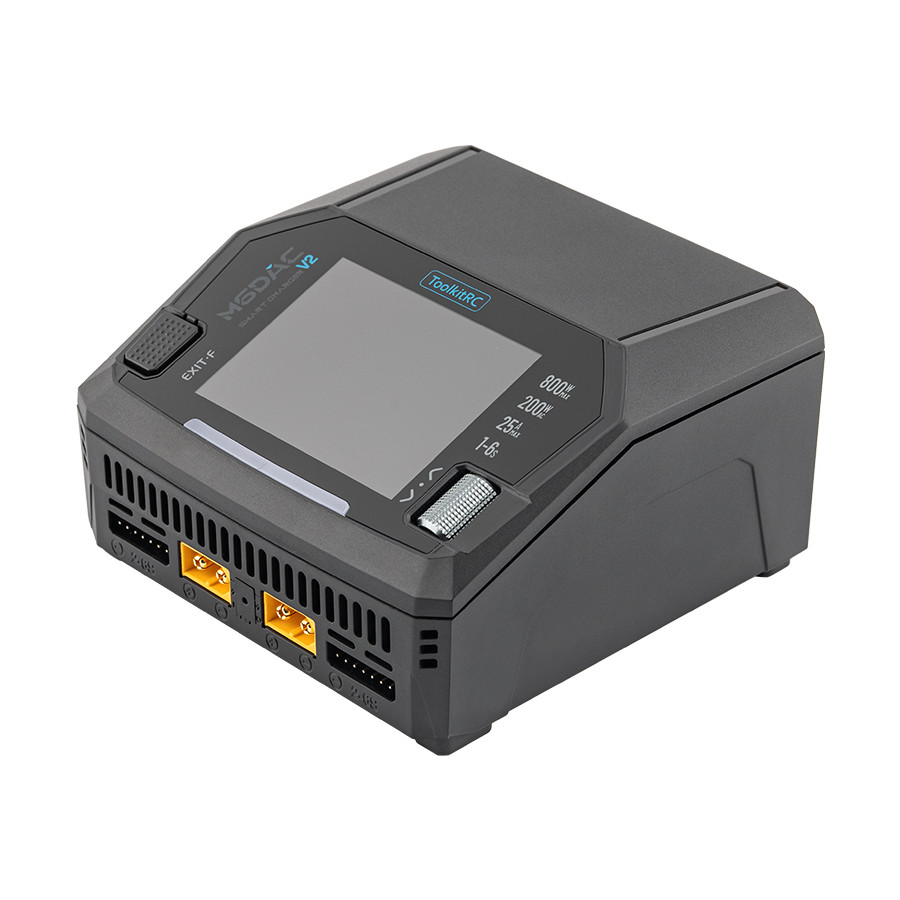

ToolkitRC M6DAC V2 is a compact dual-channel charger with a built-in 200W power supply. It can be powered via AC, an external DC source, or a battery (7–28V). When powered externally, the charger can deliver up to 400W per channel with charging currents up to 16A. It supports not only standard LiPo batteries but also LiHV, LiFe, Li-ion, NiMH, and Pb chemistries. A special power supply mode allows adjustable voltage and current output — ideal for powering devices or charging smart batteries such as those from DJI.
The charger features a USB-C port with 65W fast charging for phones, laptops, or HD cameras. It can charge two independent batteries at different settings or operate in synchronous mode, where both channels combine power to charge a single battery at up to 700W and 28A. When using the built-in AC power supply, the total output is limited to 200W.
The charger is controlled using a metal scroll wheel, and all charging parameters are clearly shown on a 2.8" IPS display (320×240 resolution). Active cooling is provided by a built-in fan.
Do not power the charger with AC and DC sources at the same time.
Key Features
- Power supply: 100-240V AC / 7-28V DC (max 30A)
- Charging power: 200W (AC) / 2×400W 0.1-16A or 1×700W 0.1-28A (DC)
- Battery types: LiPo, LiHV, LiFe, Li-ion, LTO 1-6S, NiMH 1-16S, Pb 1-10S
- Balance current: 1A
- Balancing accuracy: < 0.005V
- Discharge power: 15W
- USB-C: 65W (3.25A @ 20V)
- USB-C protocols: PD3.0/PD2.0/PPS/QC4/QC3.0/QC2.0/AFC/FCP/SCP/PE2.0/PE1.1/SFCP/VOOC
- Size: 116x112x63mm
- Weight: 570g
User Guides
Package Includes
- 1x Charger
- 1x EU Power Cable
