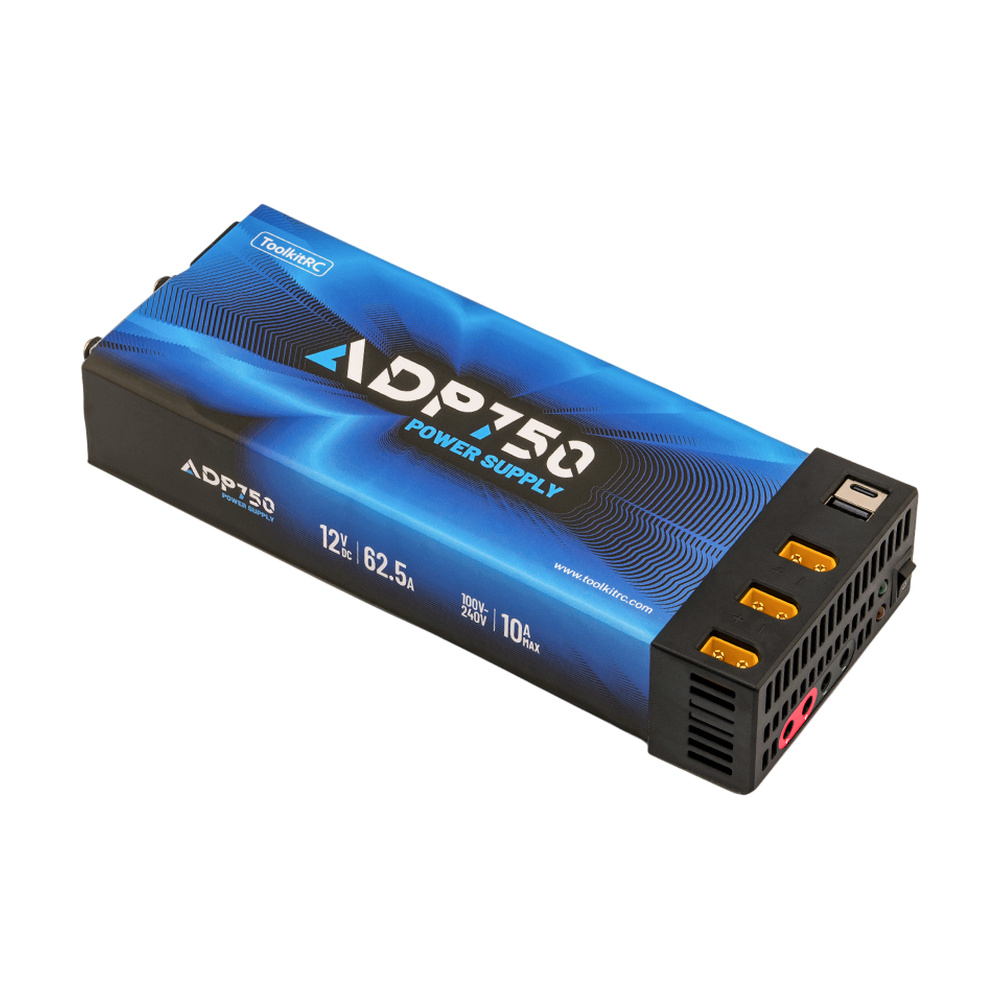

ToolkitRC ADP750 is a switched-mode 12V DC power supply with a current capacity of up to 62.5A, suitable for powering high-performance DC chargers and charging stations at races or in the workshop. It is powered directly from 100-240V mains and delivers continuous power of up to 750W, allowing full use of the charging power of the ToolkitRC M8D charger (sold separately).
The power supply has a total of 7 outputs that can be used simultaneously: 3x XT60 (male) for direct charger connection, 2 sets of 4mm banana sockets and two USB ports — USB-C with PD 3.0 and USB-A with QC 2.0, each with up to 30W output, suitable for charging a transmitter, FPV goggles or phone. Both XT60 and 4mm outputs are rated for 30A. Cooling is provided by a fan with automatic speed control based on load. The power supply is protected against short circuit, overcurrent, overload, overheating and overvoltage. The 12V output is switched on using a front-panel switch. Dimensions are 227x90.2x42.4mm and weight is 1050g, with an operating range of -10 to 40°C. In addition to the mains cable, the package includes three connection cables: XT60-XT60, a two XT60 to one XT90 adapter, and an XT60 to 4mm banana plug cable.
Key Features
- Output voltage: 12V DC
- Maximum power: 750W
- Output current: up to 62.5A
- USB-C output: PD 3.0, 5V/9V 3A, 12V 2.5A (max 30W)
- USB-A output: QC 2.0, 5V/9V 3A, 12V 2.5A (max 30W)
- Output connectors: 3x XT60 Male (max 30A), 2x set of 4mm banana sockets (max 30A)
- Protections: short circuit, overcurrent, overload, overheating, overvoltage
- Cooling: fan with automatic speed control
- Input voltage: 100-240V AC 50/60Hz
- Input current: max 10A
- Operating temperature: -10 to 40°C
- Size: 227x90.2x42.4mm
- Weight: 1050g
Package Includes
- 1x Power supply
- 1x Mains cable (EU)
- 1x XT60 Female - XT60 Female cable
- 1x 2x XT60 Female - XT90 Female cable
- 1x XT60 Female - 4mm banana plug cable
