TBS Unify Pro32 DP 10-3000mW

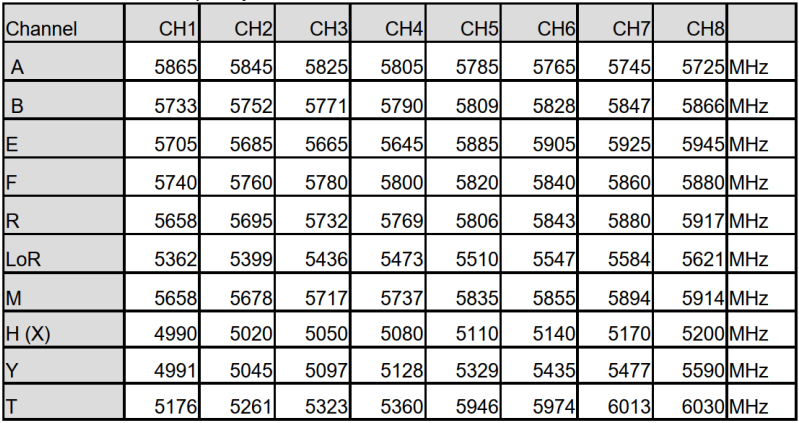

TBS Unify Pro32 DP is a powerful analog video transmitter suitable for freestyle and long-range drones. The transmitter operates in the 4.99–6.03GHz band and supports up to 10 different channels.

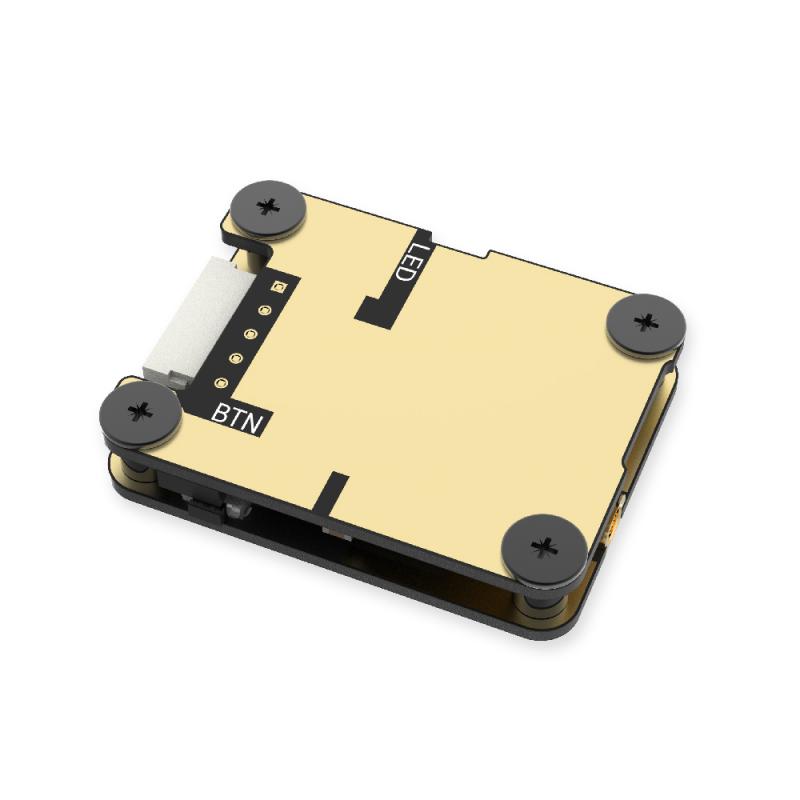

The maximum output power of the video transmitter is up to 3W, depending on cooling. The video transmitter features exposed copper for efficient heat dissipation to an external heatsink (sold separately) or the drone frame.

Unify Pro32 DP supports configuration via SmartAudio 2.1 protocol. There is also a one-button channel and power setting. The transmitter has an MMCX connector for antenna or pigtail connection. The video transmitter can be powered directly from a battery with a voltage range of 6-25V (2-6S). The module offers output power from 10 mW to nearly 1W, with the possibility of activating higher modes.

Unify Pro32 DP is a very powerful video transmitter. Operating with poor-quality antennas or without antennas at higher power levels will inevitably lead to damage to the device, faster than you might expect. Therefore, it is necessary to use the wideband mode at the highest power setting exclusively with wideband antennas.
