Introducing the TBS Tracer Sixty9, a VTx and receiver AIO board sporting a race-friendly, long-range capable video transmitter combined with the same on the TBS Tracer side. Mounting holes are 20x20, but adapters for your 30x30 stacks, and a plastic case for mounting the unit to your frame without any stacking necessity are included.
Outputs 2x CRSF + 2x PWM (or 6x PWM) directly to your FC. The main JST-SH connector connects to your flight controller and video camera (or also FC for those that like the FC-OSD).
Key Features
- Weight: 4.1g (board only)
- Antenna ports: 1x video transmitter, 1x R/C receiver
- Size: 24mm x 24mm
- Requires: Firmware V5.62 and above
- CRSF V3 ready
- Input voltage: 6V - 25V (2-6S)
- Power: 14dBm (25mW), 20dBm (100mW), 26dBm (400mW), 30dBm+ (1000mW+)

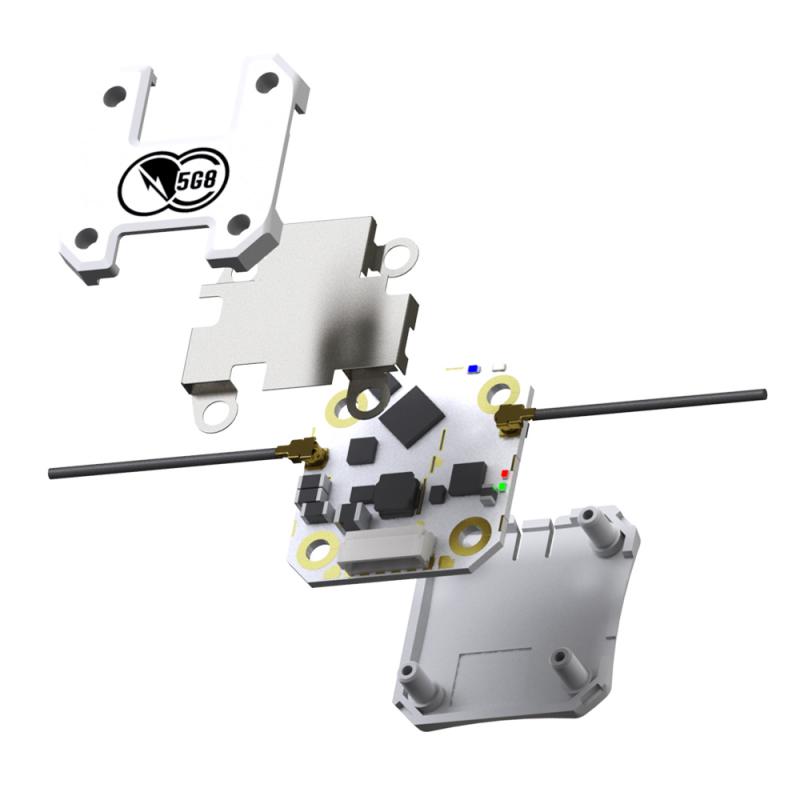

Package Includes
- 1x TBS Tracer Sixty9
- 1x TBS Tracer Immortal-T antenna
- 1x u.FL to SMA mount (for VTx)
- 1x 30x30 heatsink / case
- 1x 20x20 heatsink / case
- 1x optional tin-shield (for added low-noise tolerance)
- 1x JST-SH x 9 connector
