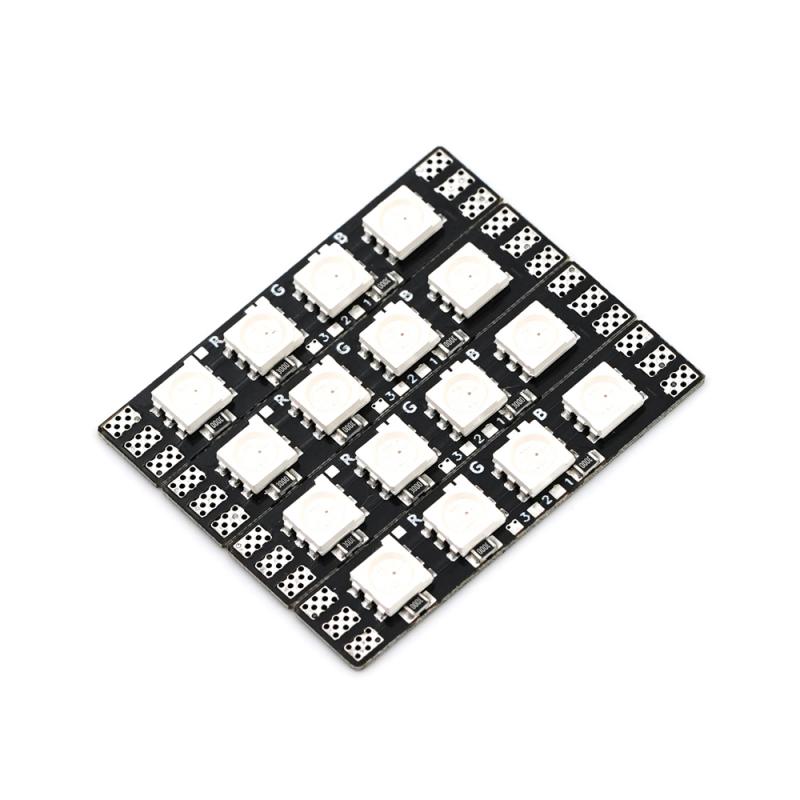

TinyLEDs RGB RaceLiteWire LEDs

Racewire with integrated RGB LEDs combines classic racewire for easy motor replacement with 5050 RGB diodes. The LEDs respond to throttle – brightness changes according to the current motor RPM. It is not a permanent backlight. The LEDs only light up during motor operation.

The boards can be mounted on the frame arms in any orientation and are equipped with solder pads for connecting additional LEDs located on the underside of the arms. Just connect the pads "1, 2, 3" on top with the same pads on the lower LEDs. The bottom of the PCB must be insulated.

Color changes by connecting the pads labeled R, G, and B. When connecting the pads, the RGB diodes will light up red (R), green (G), or blue (B). By connecting multiple pads, the colors mix.
