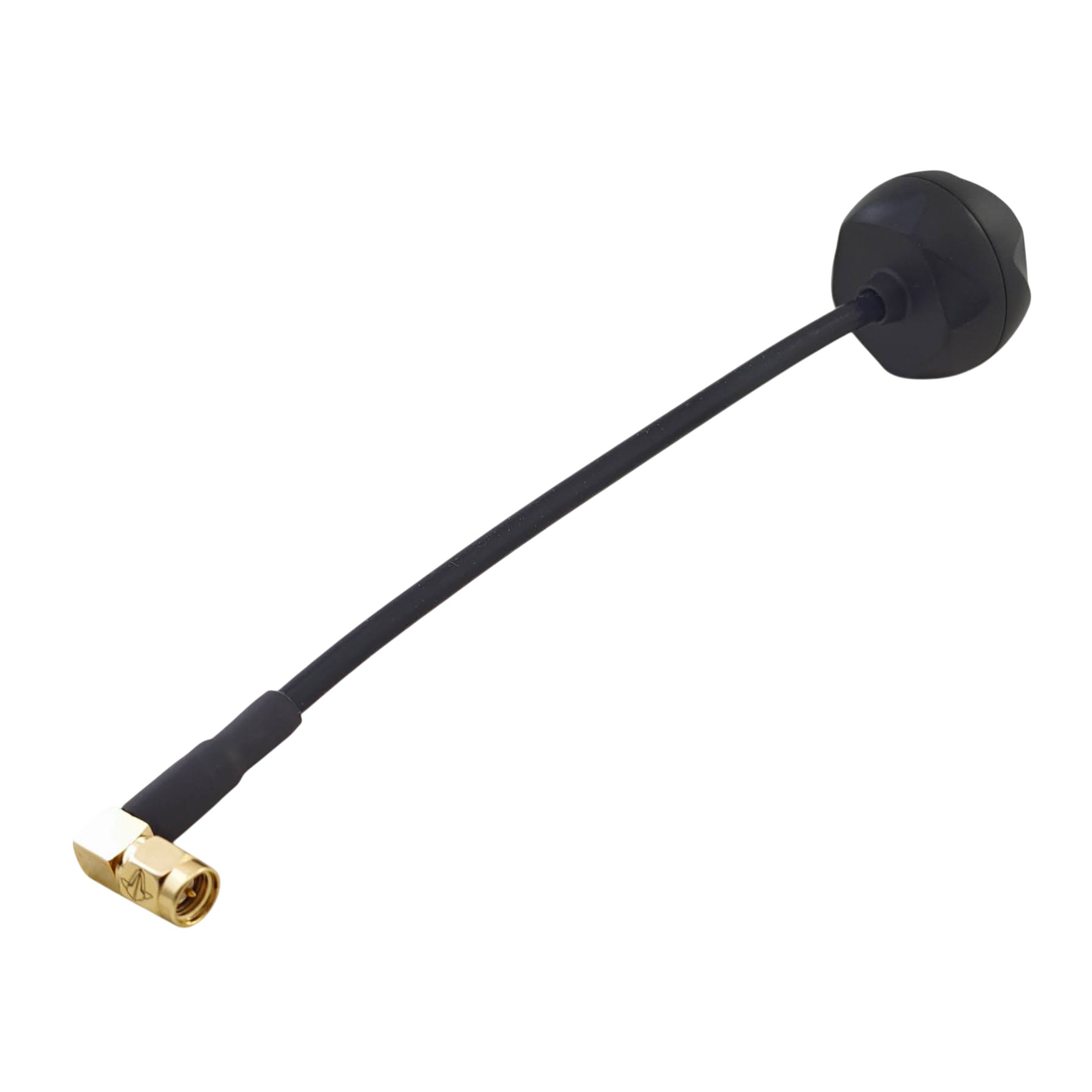

TBS TBS Airscrew - 170mm RHCP SMA 90°
In Stock
€ 20,59
TBS Airscrew RHCP SMA 90° is an omnidirectional antenna for video transmission in the 5.8GHz band with RHCP polarization and a SMA connector in a 90° design. Thanks to its wideband design, it covers the full 4900-6100MHz range. Five multi-phase elements create a circular radiation pattern that suppresses oppositely polarized signals. The antenna is suitable for long-range flying and as a receiving antenna for FPV goggles.
The plastic housing is ultrasonically welded for better impact resistance, and the double-sheathed cable resists mechanical stress.
Key Features
- Frequency range: 4900-6100MHz
- Polarization: RHCP
- Gain: 1.3dBic
- Axial ratio: 0.95
- Total antenna length: 170mm
- Cable length: 130mm
- Connector: SMA 90°
- Weight: 20g
Package Includes
- 1x Antenna
