The TBS Mojito Electronics Package is a complete electronics set designed for the TBS Mojito aircraft. It includes all key components required to power the model, except for the batteries. The set is compatible with 6–8S LiPo power and is designed to provide reliable performance and easy installation.
The package includes a powerful AOS Supernova 3220 1000KV motor paired with an HQ 8×4.5 propeller. The power system consists of a TBS Lucid PDB and a TBS Lucid 12S ESC with an aluminum heatsink for efficient heat dissipation. The ESC runs on AM32 firmware and supports up to 70A continuous current. Two 330μF capacitors are included for voltage filtering. The PDB distributes power to the motors, flight controller, video system, and servos, and features both a 5/8V 4A BEC and a 12V 4A BEC.
Flight control is handled by the TBS Lucid Freestyle flight controller, powered by an AT32F435RMT7 processor and ICM-42688P gyro. It includes 8MB of blackbox memory and uses a 20×20 mm mounting pattern.
For navigation, the set includes a TBS M10 GPS module. The power leads are made from 12 AWG wire and equipped with an XT60 connector for safe current handling.
The TBS Mojito Electronics Package offers a complete and optimized electronic solution for building the TBS Mojito model.

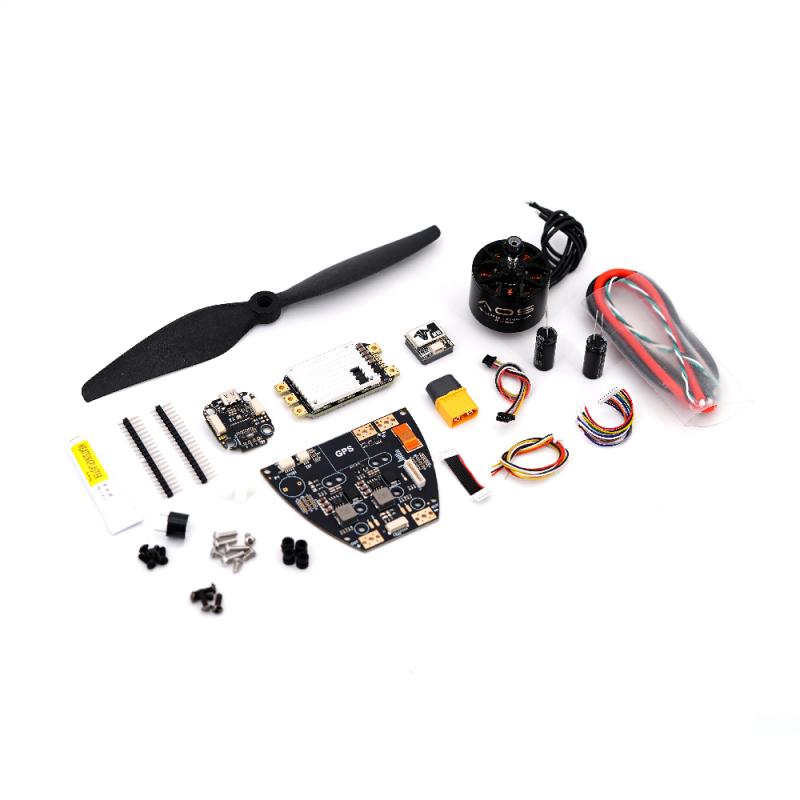

Package Includes
- 1x AOS Supernova 3220 1000kV motor
- 1x HQ 8X4.5 Black Glass Fiber Reinforced Nylon
- 1x TBS Lucid Wing PDB
- 1x TBS Lucid 12S ESC w/ heat sink
- 2x 330uF 12S Capacitor
- 1x TBS Lucid Freestyle FC
- 1x TBS M10 GPS
- 1x 12 AWG Power cable and XT60 connector
- 1x DJI O3/O4 extended cable
