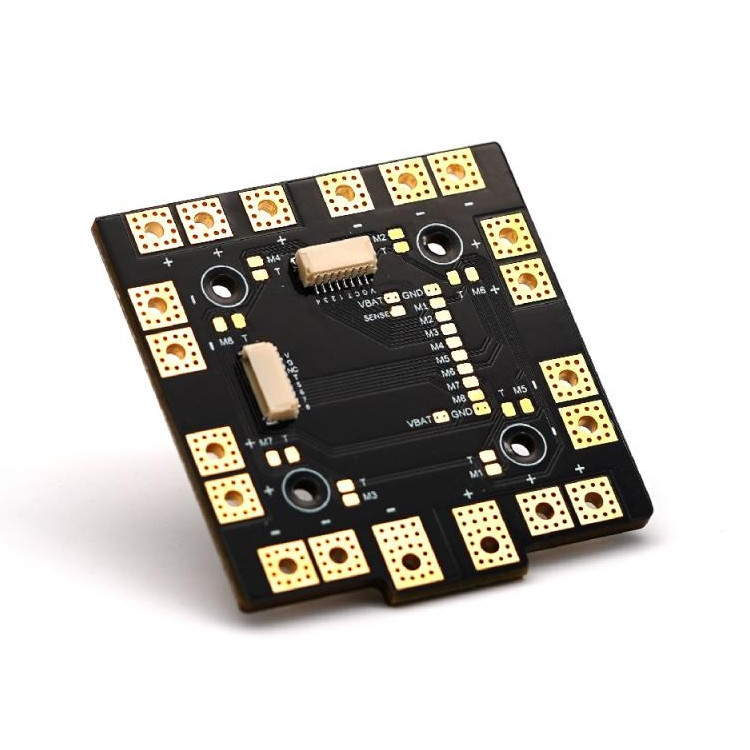

TBS Lucid PDB 500A
In Stock
€ 15,59
Lucid PDB 500A is a power distribution board designed for use with individual ESCs, typically found on larger long-range drones or Cinelifters. The board contains no electronics, making it suitable for high-voltage applications. Thanks to its 8-layer PCB with 3oz copper, it supports current loads of up to 500A. It provides pads for connecting up to 8 ESCs, each with additional pads for signal and telemetry wires. Signal wires can be connected to the flight controller via the provided connectors or solder pads.
Key Features
- PCB: 8 layer, 8oz copper
- Durable current: 500 A
- Dimensions: 58x62mm
- Mounting holes: 30.5x30.5mm
- PCB board thickness: 3mm
- Support up to 8 ESC channels
- Telemetry pad
- Sensor pad VBAT
- Weight: 36 g
Package Includes
- 1x PDB
