TBS Lucid DroneCan Airspeed Sensor
In Stock
€ 81,99

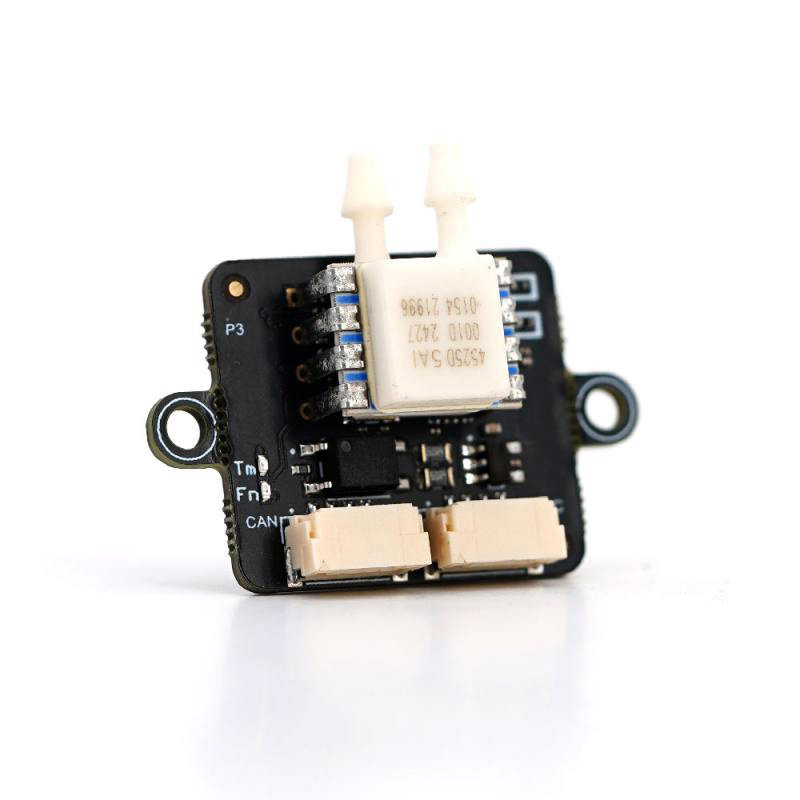

TBS Lucid DroneCAN Airspeed Sensor is an accurate airspeed sensor designed for aircraft with Ardupilot firmware. The sensor measures speed using a stainless steel pitot tube and a MS4525DO differential pressure sensor.
The module can be connected to the flight controller via CAN or I2C bus. A JST-GH connector and solder pads are available. The status LED indicates communication with the autopilot.
The sensor is powered by 5V. The measurement range is up to 100m/s (360 km/h) with an accuracy of ±2 %.
Key Features
- Input voltage: 4-6V
- Sensor: MS4525DO
- Current: 60mA
- Output: DroneCAN, I2C (address 0x28)
- Maximum speed: 360km/h
- Accuracy: ± 2.0%
- Connector: JST-GH 4P
- Size: 35x22x11mm
- Weight: 4g
User Guides
Package Includes
- 1x Sensor
- 1x Pitot tube
- 1x Cable
- 1x Silicone tube
