Tattu R-Line 1000mAh 4S 160C V6 (XT30)

The Tattu R-Line series is designed for racing FPV drones. It is based on batteries developed by the Tattu Toppilot team and focuses on high discharge current, low internal resistance, and lower battery temperature after landing.

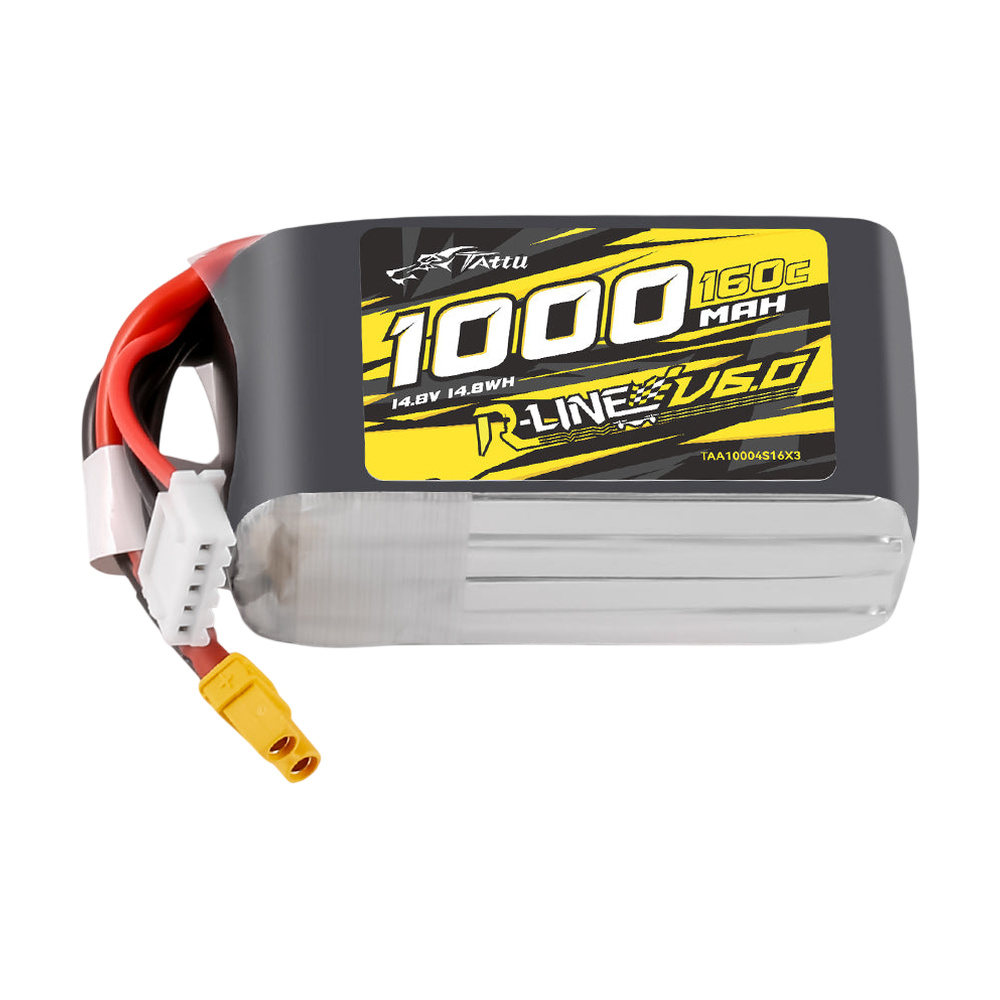

The Tattu R-Line 1000mAh 4S 160C V6 is a lightweight and powerful LiPo battery suitable for 3-4" racing FPV drones. At a weight of 98g, it offers a discharge rating of 160C. It is equipped with an XT30 connector, common on smaller 3-4" drones, and 16AWG power cables with a length of 55mm.

The sixth generation of the series (V6) introduces new cell chemistry with a semi-solid electrolyte („semi-solid electrolyte"). A lower proportion of liquid components improves safety and extends battery life. The electrodes use a 3D conductive structure made of graphite, carbon nanotubes, and graphene, allowing the battery to maintain stable performance even during sharp current spikes. Nanoparticles and the porous electrode structure reduce internal resistance by 20 %, resulting in faster throttle response and less voltage sag under load. Energy density reaches 160Wh/kg and 316Wh/L. The modified internal structure dissipates heat better and withstands impacts from crashes.

Before use, read the Guidelines for safe use of LiPo batteries.
