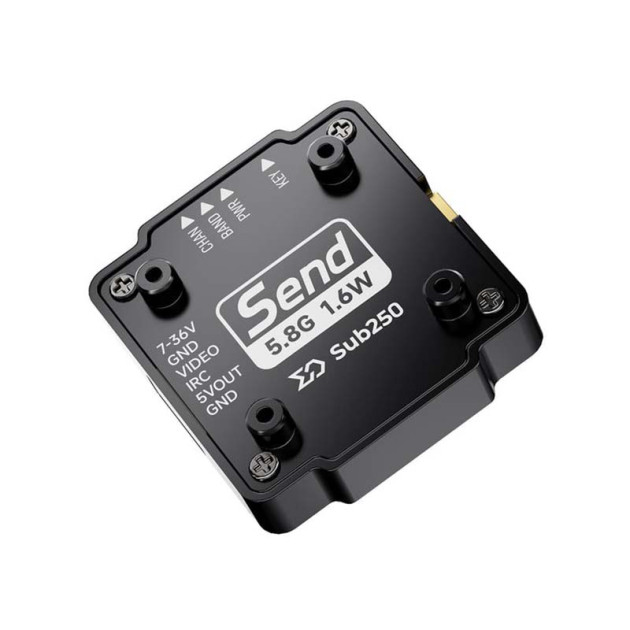

Sub250 Send T1600 is a powerful analog video transmitter designed primarily for freestyle drones. The CNC aluminum housing ensures structural strength as well as efficient cooling. The VTX is equipped with overheat protection, preventing damage at high temperatures.
The transmitter offers up to 1.6W of output power and supports 48 channels. Control is possible via a button and indicator LEDs, or conveniently through the flight controller using the IRC Tramp protocol. The VTX also features a built-in microphone for real-time audio transmission.
Power input is supported in a wide range of 7–36V (2–8S). A 5V output (max. 600 mA) is available for powering an FPV camera or an additional fan. For mounting in the frame, the unit features 20x20 mm mounting holes. The antenna connector is MMCX.
Do not power on the video transmitter without an antenna attached. For indoor use, we recommend ensuring sufficient cooling.
Key Features
- Input voltage: 7-36V (2-8S)
- Output Power: 25/200/600/1600mW
- Protocol: IRC Tramp
- Number of channels: 48
- Mounting holes: 20x20mm (M2)
- BEC: 5V@600mA
- Built-in microphone
- Antenna connector: MMCX
- Connector: SH1.0 6pin
- Size: 35x32x11mm
- Weight: 15.9g
Package Includes
- 1x Video transmitter
- 1x Linear antenna
- 1x MMCX - SMA pigtail
- 1x Screw set
- 1x Cable
