Sub250 OasisFly35 O4 Pro - 4S ELRS s GPS

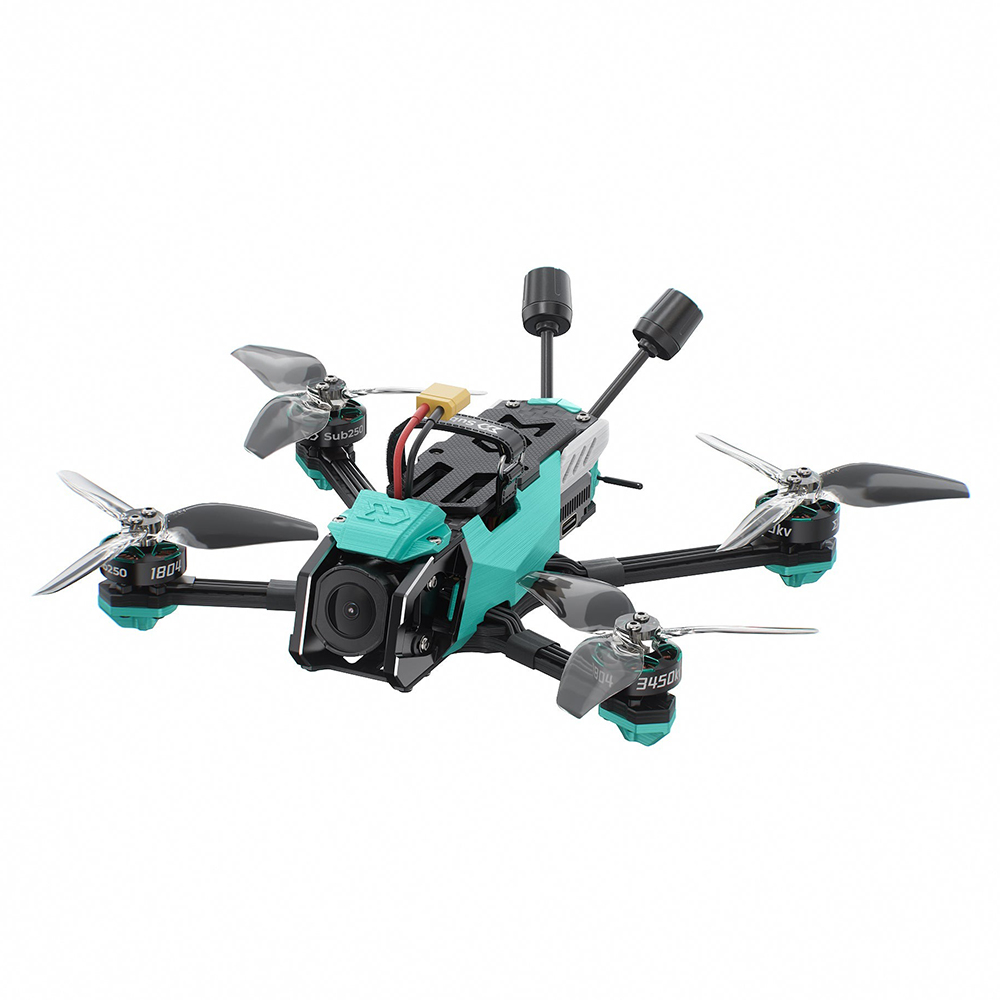

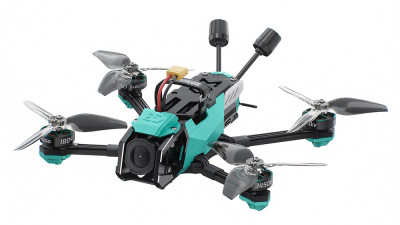

Sub250 OasisFly35 is a 3.5″ freestyle drone with digital video transmission DJI O4 Pro. The drone has a Deadcat configuration, where the front arms are shifted further back, and the edges of the propellers are not visible in the FPV image. The drone is equipped with a GPS module, allowing for automatic return to the launch point. The distance and direction to the launch point are also displayed in the image. The electronics are protected with plastic side plates against grass and other debris. The FPV camera is mounted in aluminum side plates via rubber inserts that reduce the transmission of vibrations to the image. The arms are cut from 3.5mm thick carbon for higher durability.

The propulsion is provided by 1804 3450KV motors combined with HQProp 3.5x3.5x3 propellers and a 4S battery. Flight control is managed by the AIO board Redfox A3 with the F722 processor, ICM42688P gyro, a barometer for altitude measurement, and 16MB memory for blackbox. Integrated regulators with BLHeli_32 firmware can handle current up to 45A. The drone is equipped with an external ELRS receiver operating at 2.4GHz.

The recommended battery is a 4S 500–650mAh with an XT30 connector.
