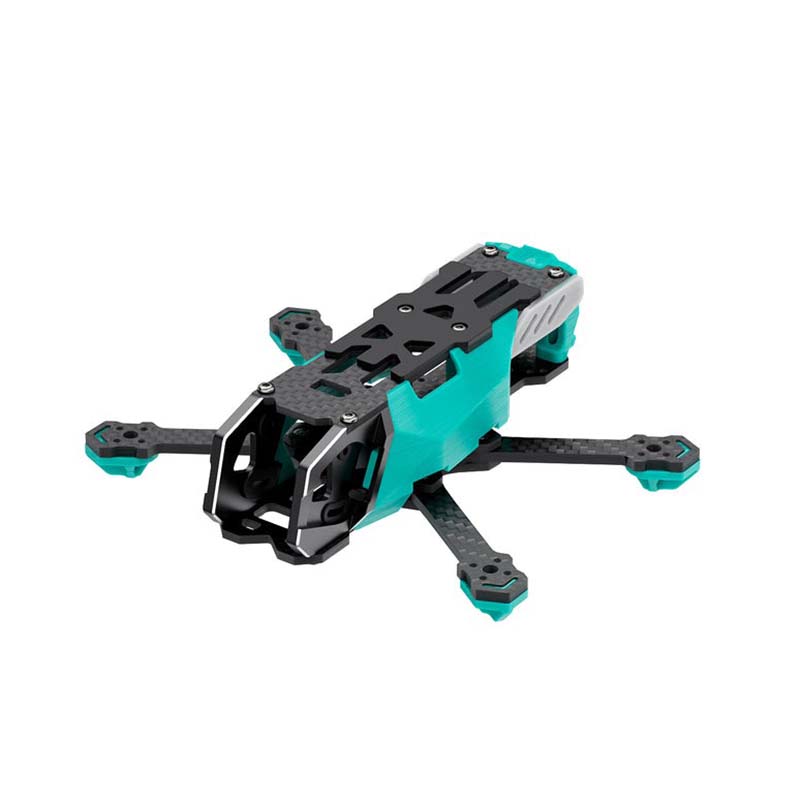

Sub250 Oasisfly30 O4 Pro is a frame designed for building a compact 3" freestyle drone with both digital and analog video transmission, including DJI O4 Pro. The FPV camera is mounted in front of the front motors, so no propeller edges are visible in the camera view. The camera angle is adjustable between 0–20°. For high durability, the drone features 3mm thick carbon arms. It is also equipped with 3D-printed plastic side panels to protect electronics from debris. The DJI O4 unit is easily accessible for binding and PC connection. The camera is mounted using aluminum brackets with silicone dampers to reduce vibration.
The frame is designed for motors with 9mm and 12mm M2 mounting patterns and 20x20mm stacks. Mounting holes for video transmitters support both 20x20mm and 25.5x25.5mm.
Key Features
- Diagonal motor distance: 150mm
- Arm thickness: 3mm
- Propeller size: 3"
- Camera size: 19-20mm
- Mounting holes for motors: 9/12mm M2
- Mounting holes for stack: 20x20mm M2
- Mounting holes for VTX: 20x20/25.5x25.5mm M2
Package Includes
- 1x Frame
- 1x 3D printed parts kit
- 2x Lipo strap
- 1x Battery pad
