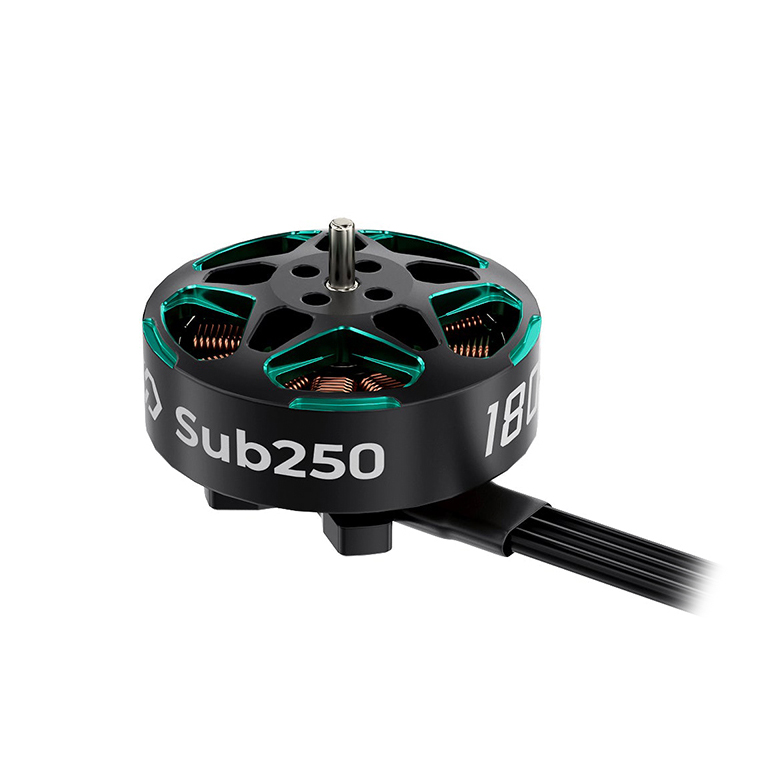

Sub250 1804 is a lightweight motor suitable for 3–4″ drones powered by 3-4S Lipo batteries.
The motor uses strong magnets N52H for high thrust and unibell design for increased durability. The motor is equipped with a 1.5mm shaft and M2 holes for securing the propeller. The mounting holes are 12mm M2.
Key Features
- Stator diameter: 18 mm
- Stator height: 4 mm
- KV: 3450
- Configuration: 12N14P
- Dimensions: Ø22.74 × 13.2 mm
- Weight: 13.2 g (including 13cm cables)
- Magnets: N52H ARC
- Power cables: 24 AWG, length 150 mm
- Mounting holes: 12mm M2
- Shaft diameter: Ø2.0 mm (inner) / Ø1.5 mm (outer)
Package Includes
- 1 x Sub250 Motor
- 5 x M2*6mm screw
- 5 x M2*8mm screw
