The Speedybee ELRS Nano receiver for 2.4GHz. ExpressLRS is an advanced open-source RC system offering long range, low latency, high update rates, and many useful features. Learn more about ELRS here.

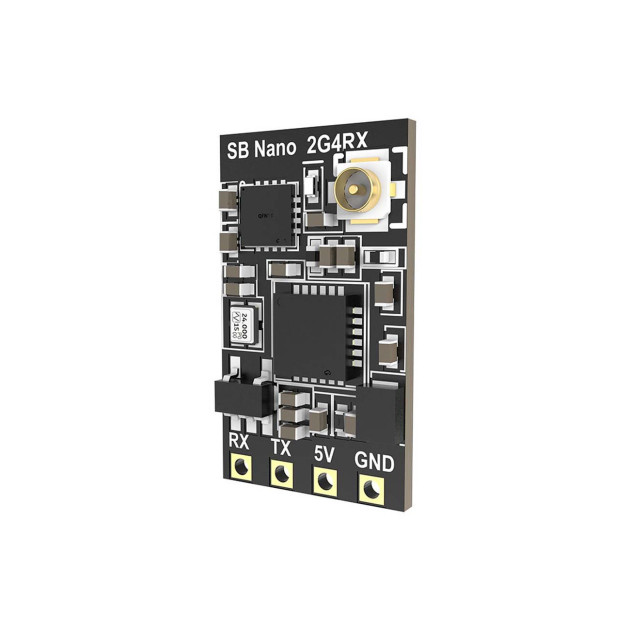

The Speedybee ELRS Nano features a durable T-dipole antenna with a total length of 84 mm. The receiver offers solder pads for connection, and the antenna is attached via an IPEX1 connector. Telemetry output power is approximately 22 dBm (160–170 mW). With its compact size of 10.4×18.4 mm and lightweight design of 0.7 g (without antenna), it is suitable for all types of drones. The receiver uses a TXCO (temperature-compensated crystal oscillator) to ensure signal stability under all conditions.
Key Features
- Antenna connector: IPEX
- Firmware: SpeedyBee Nano 2.4GHz RX 3.4.3
- Frequency band: 2.4GHz ISM
- Telemetry power: 160-170mW
- Size: 10.4x18.4mm
- Power: 5V
- Power supply: CRSF
- Weight: 0.7g (without antenna)
- Antenna: T dipole - 56x82mm, 0.6g
Package Includes
- 1x Receiver
- 1x Antenna
- 1x Cable
- 1x Pin strip
