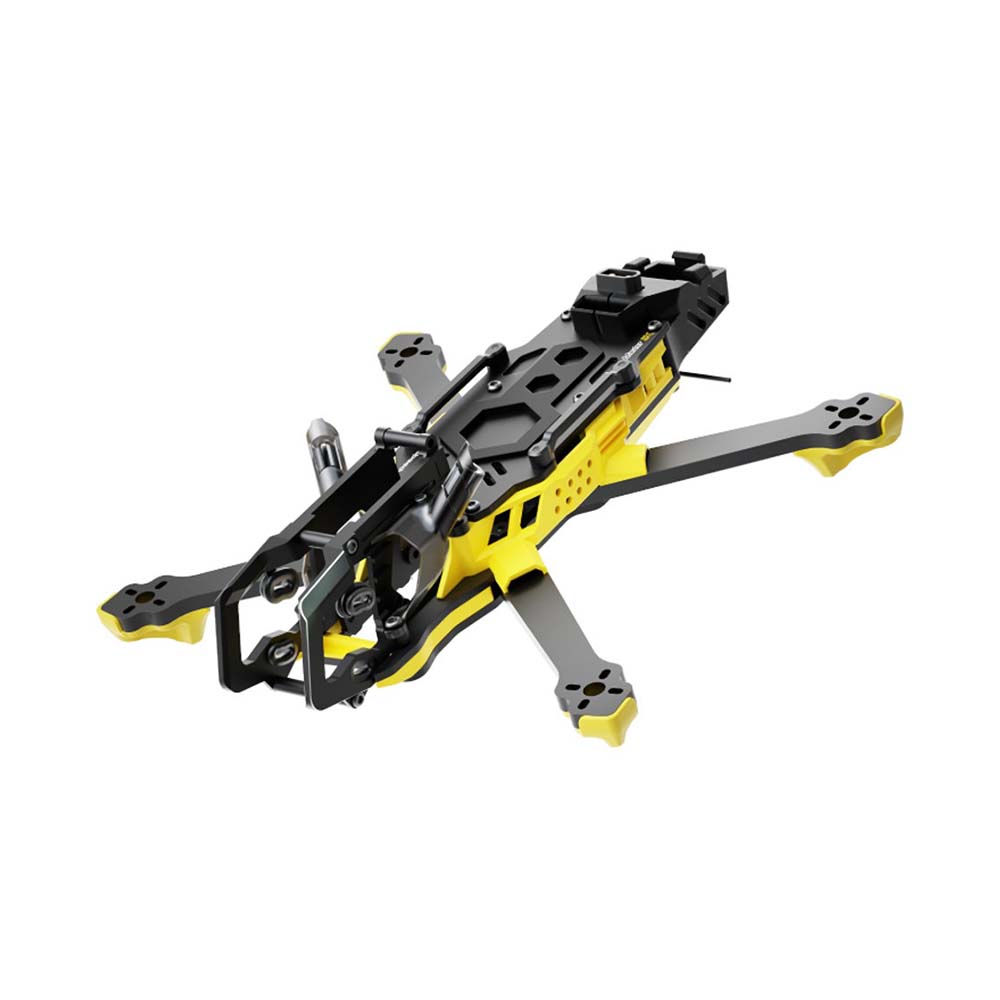

SpeedyBee Master3X is an innovative frame designed for building a 3.5" freestyle drone. The Master3X features a removable front section. The O4 Pro variant includes an aluminum front part specifically made for the DJI O4 Pro camera. This front part is also compatible with the SpeedyBee Bee25 frame. Thanks to the modular front design, it can be easily detached, allowing a single DJI O4 unit to be quickly swapped between a 3.5" freestyle drone and a 2.5" Cinewhoop.
The frame supports plastic accessories produced using injection molding, making them more durable than standard 3D-printed parts. Accessories include landing pads, side panels to protect electronics from debris, a receiver mount, buzzer mount, and more. For enhanced durability, the arms are CNC-cut from 4mm thick carbon fiber.
The frame is designed for AIO boards with a mounting pattern of 25.5x25.5mm and motors with 9mm or 12mm mounting holes. The DJI O4 video transmitter is housed in the aluminum front section.
Key Features
- Diagonal motor spacing: 171mm
- Top, middle and bottom fin thickness: 2mm
- Arm thickness: 4mm
- Propeller size: up to 3.6"
- Mounting holes for motors: 9/12mm M2
- Mounting holes for AIO: 25.5x25.5mm
- Height for stack: 11mm
- Weight: 87g (without front)
- Battery compartment: 67x31x40mm
- 18x18mm GPS holder
- Aluminum front for DJI O4 Pro
- Integrated beeper
Package Includes
- 1x Frame
- 1x Plastic parts kit
- 1x Lipo strap
- 1x Beeper
- 2x Linear antenna
