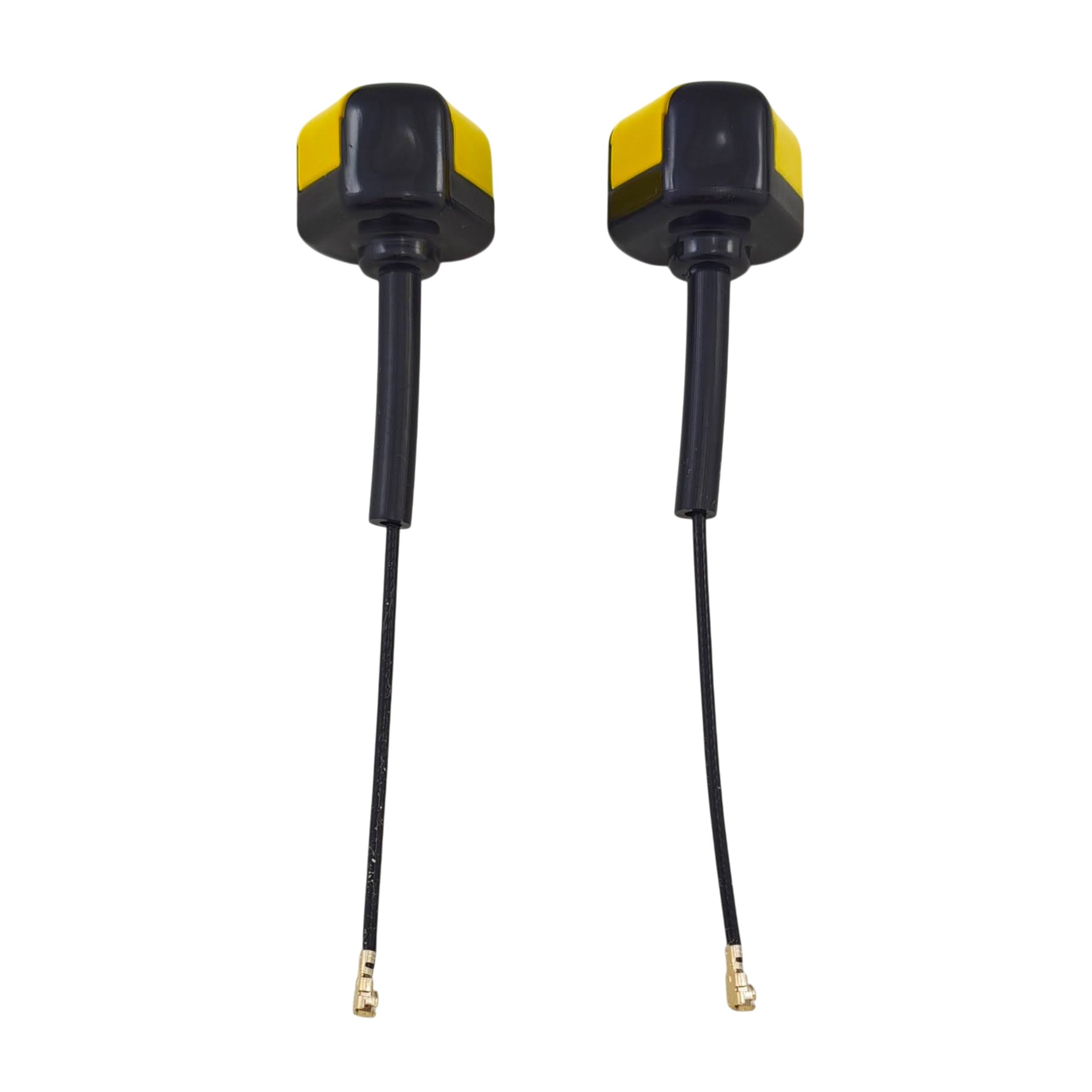

SpeedyBee V2 5.8GHz Antenna is a compact antenna with right-hand circular polarization (RHCP) and a u.FL connector, suitable for both transmitting and receiving sides of smaller FPV aircraft. It operates in the 5.5–6.0 GHz band with a gain of 2.8 dBi; low standing wave ratio and high-quality circular polarization ensure a clean image and good resistance to reflections.
Key Features
- Connector: u.FL
- Polarization: RHCP
- Gain: 2.8dBi
- Frequency range: 5.5–6.0GHz
- Axial ratio: <1.0
- VSWR: <1.1 (5.8GHz)
- Total antenna length: 87mm
- Length of rigid antenna tube: 23mm
- Cable length without connector: 42mm
- Weight: 3.7g
Package Includes
- 2x Antenna
