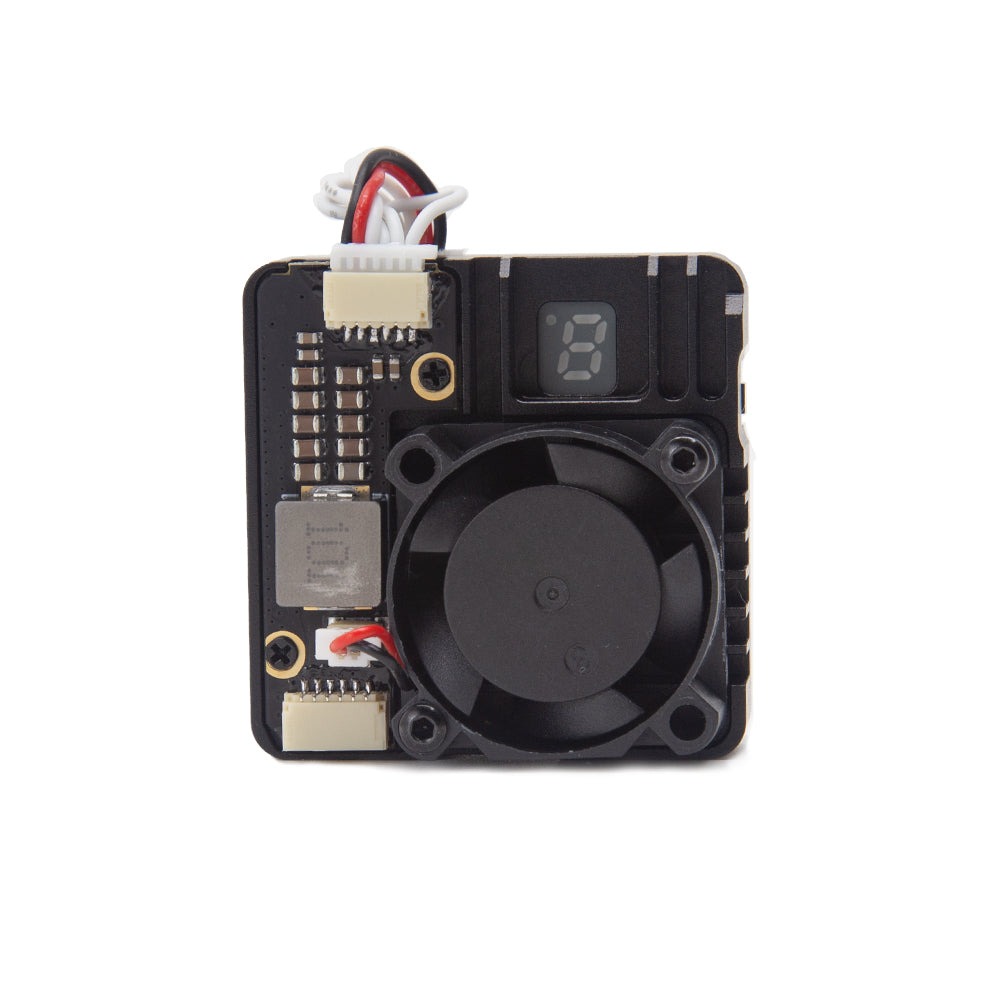

Skyzone TX2501 is a powerful video transmitter for freestyle and long-range drones. The video transmitter supports common 5 bands plus L Band and X Band. Power is adjustable to 25/800/1600/2500mW. The video transmitter can be powered directly from the battery with a voltage range of 7-26V. Setting of the video transmitter is possible via a button or via the flight controller using the IRC Tramp protocol. The video transmitter is equipped with a heatsink for better heat dissipation as well as active cooling by means of a fan. Due to its larger size, the video transmitter is especially suitable for larger freestyle and long-range drones or FPV airplanes.
Key Features
- Power supply: 7-26V (2-6S)
- Video transmitter power: 25/800/1600/2500mW
- Number of bands: 7
- Heat sink for heat dissipation
- Mounting holes: 30.5x30.5mm
- Size: 38.8x38.6x22.5mm
- Weight: 27.5g
- Antenna connector: MMCX
- Protocol: IRC Tramp
Package Includes
- 1x Video Transmitter
- 1x Pigtail SMA
- 1x Screw Set
