Skyzone SKY02O

On the way - Jun 6, 2024
Watch availability
€ 343,89

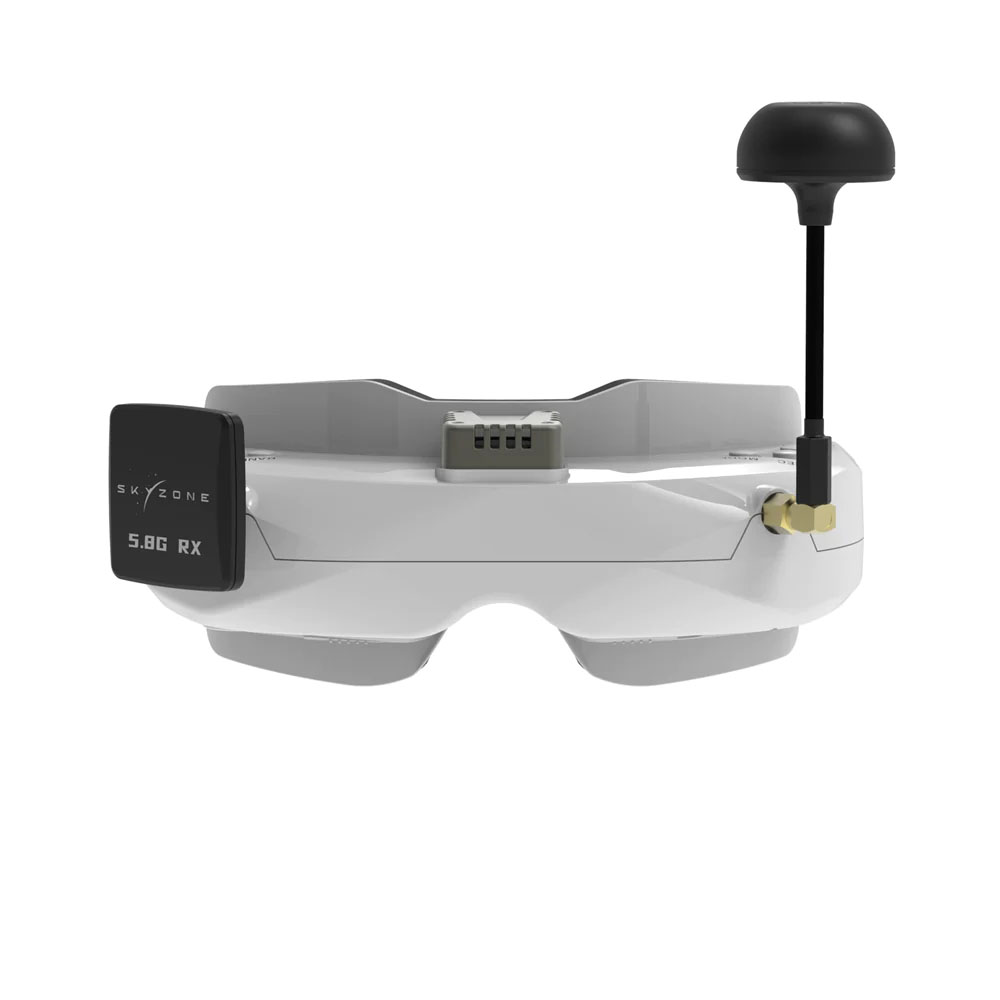

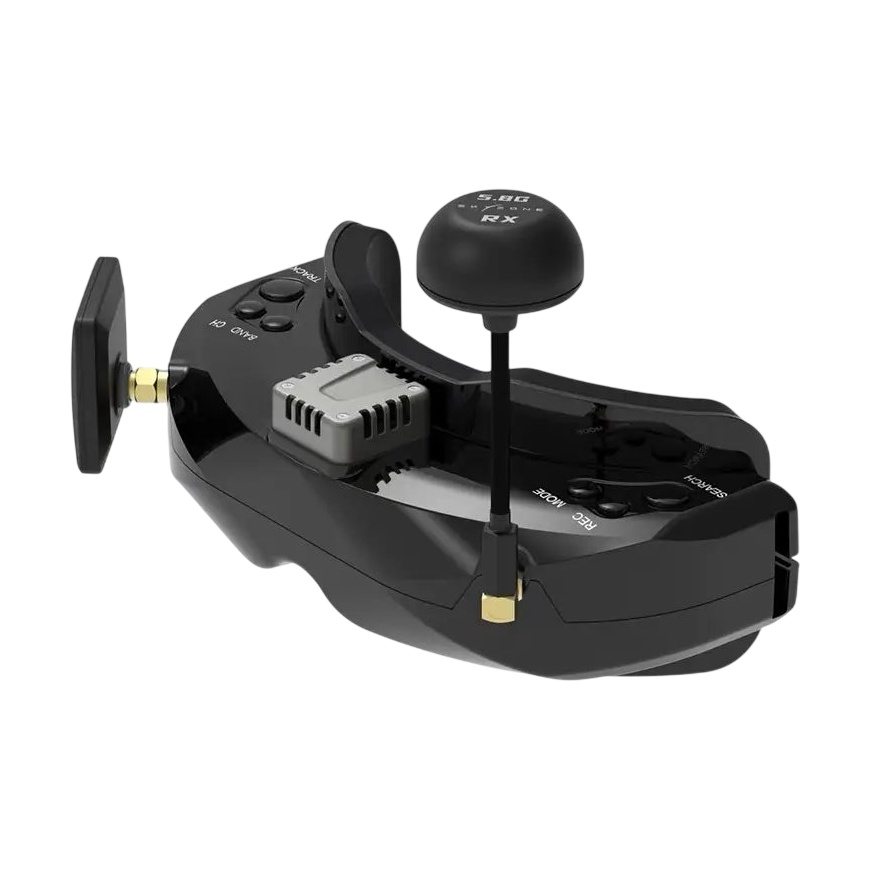

The Skyzone SKY02O is a FPV goggles for receiving analog video with good price/performance ratio. The goggles are designed especially for pilots who appreciate smaller and lighter goggles that provide higher wearing comfort than box goggles. SKY02O goggles have a pair of OLED displays with a resolution of 640x400px, which is sufficient for analogue video. Thanks to OLED technology, the goggles have vivid colors and high contrast. The goggles include an integrated Skyzone Steadyview receiver, which uses signal fusion technology from both receiver modules.

The goggles feature an anti-fog fan, IPD range adjustment, switchable aspect ratio 16:9 and 4:3 and DVR function, where the received image can be recorded to an SD card. Model aircraft owners will be pleased with the headtracking module. The goggles support HDMI input. Thus, a PC with a simulator or digital video transmission can be connected. There is also a jack for connecting an analog video input from an external receiver as well as a jack for connecting an analog output, where you can connect the goggles to a TV, for example. You can also plug headphones into the goggles. The power supply is solved by DC connector. A 2-6S Lipo battery can be used.

Antennas are included.

English manual

Key Features

  • Receiver: 5.8G 48CH Steadyview
  • FOV: 29°
  • Display: 640x400px OLED
  • DVR: MJPEG 30fps
  • IPD Range: 59-69mm
  • Input voltage: 2-6S
  • Built-in fan
  • Built-in headtracker
  • micro HDMI Input
  • Analog input
  • Analog output
  • Weight: 210g
  • Size: 167x70x79mm

Package Includes

  • 1x FPV goggles
  • 1x Case
  • 1x Faceplate
  • 2x Foam pad
  • 1x Power cable with XT60
  • 1x Headtracker cable
  • 1x Omnidirectional antenna
  • 1x Directional antenna
  • 1x Video/audio cable
