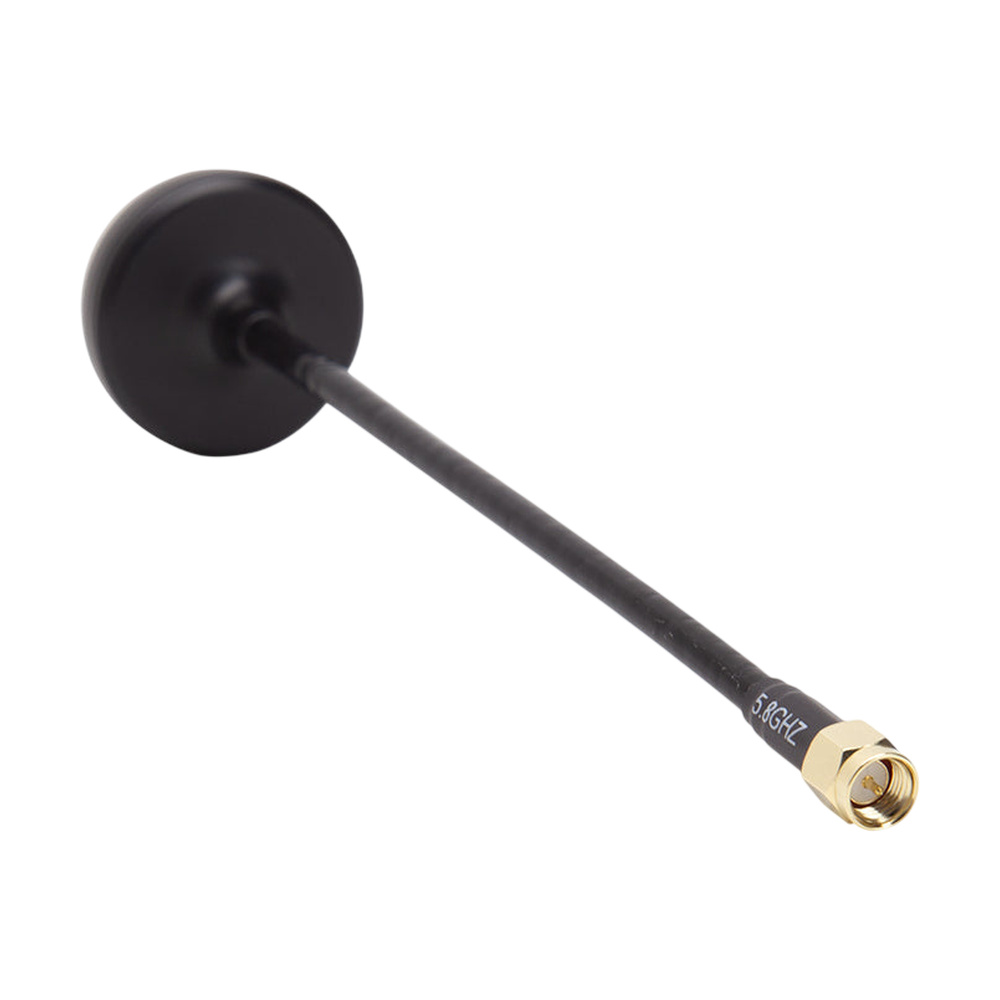

Skyzone Mushroom 5.8G is an omnidirectional antenna with RHCP polarization, an SMA connector, and an average gain of 3.71dBi for the 5.6-6.1GHz band. The manufacturer intends it for the receiving side – it is suitable for FPV goggles, a diversity receiver, or a ground station. At around 19g and with its straight design, it is better suited for goggles than lightweight drones.
RHCP polarization is suitable for analog video transmission or HDZero. The mushroom-shaped head radiates evenly in all directions, so the antenna maintains reception regardless of head orientation or model position. Gain across the band ranges between 3.4 and 4.1dBi, peaking around 5.95GHz. The 5.6-6.1GHz band covers commonly used 5.8GHz FPV channels.
The antenna screws directly onto the SMA connector of goggles or a receiver.
Key Features
- Connector: SMA
- Polarization: RHCP
- Gain: 3.71dBi (average; 3.4-4.1dBi across the band)
- Frequency range: 5.6-6.1GHz
- Radiation pattern: Omnidirectional
- Total antenna length: 170mm
- Rigid antenna section length (wire): 140mm
- Active antenna section length: 17mm
- Weight: 19.1g
Package Includes
- 1x Antenna
