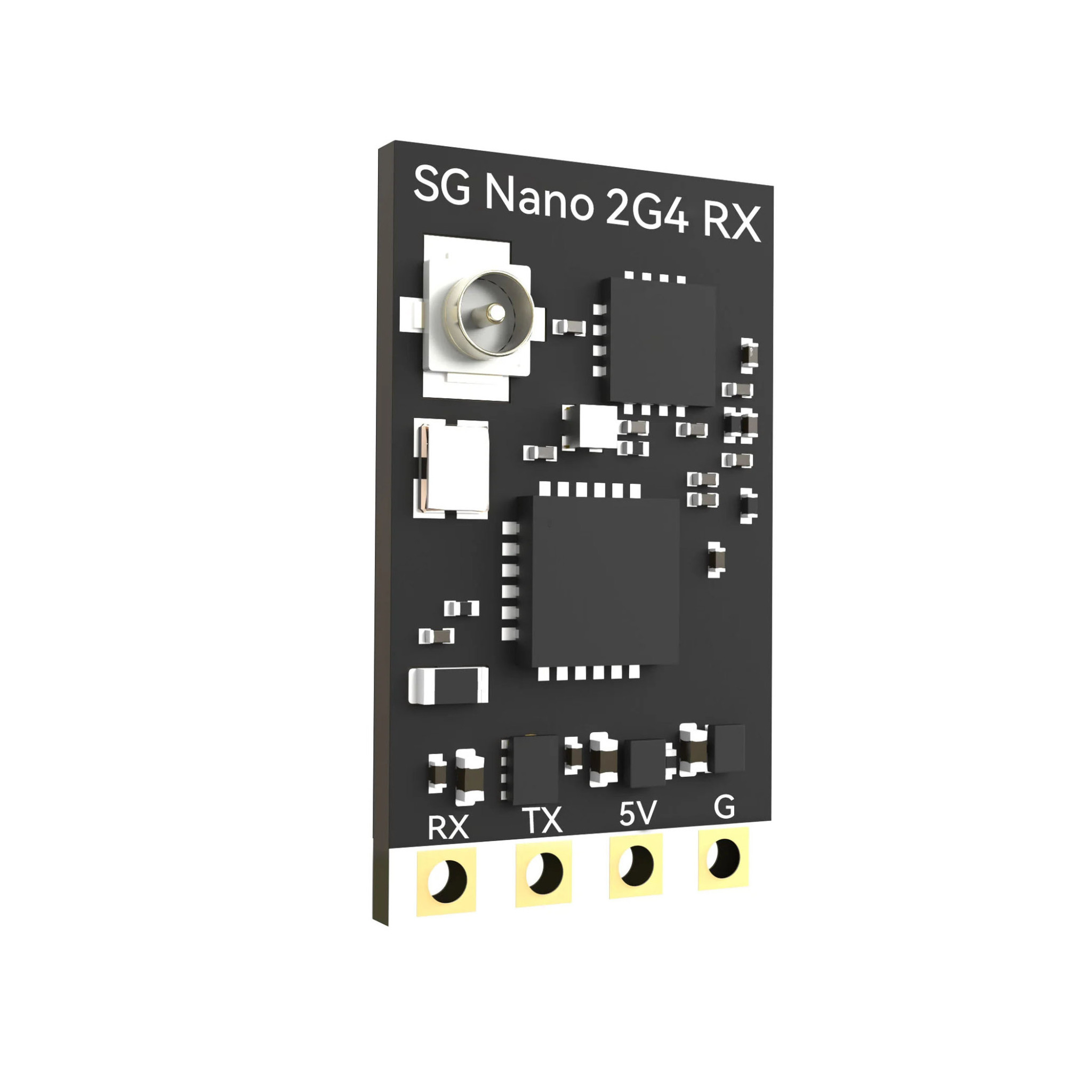

SkyGuy Nano 2.4G ELRS is an affordable ELRS receiver for the 2.4GHz band. ExpressLRS is an advanced open-source RC system with long-range, low latency, high refresh rate, and many useful features. Learn more about ELRS here.
SkyGuy Nano 2.4G ELRS features a durable T dipole antenna with a total length of 79mm. The receiver has available solder pads. The antenna is connected via the IPEX1 connector. The telemetry power is 20dBm (100mW). With its small dimensions of 10x18mm and light weight of 0.7g (without antenna), the receiver is suitable for all types of drones. The receiver uses TXCO (temperature-compensated crystal) ensuring transmission stability under all conditions.
Key Features
- Antenna connector: IPEX
- Frequency band: 2.4GHz ISM
- Firmware: SkyGuy Nano 2.4GHz RX
- Chips: SX1280 + ESP32-C3
- Telemetry power: 100mW
- Size: 10x18mm
- Power supply: 5V
- Protocol: CRSF, SBUS
- Weight: 0.7g (without antenna)
- Antenna: T dipole - 56x79mm
Package Includes
- 1x Receiver
- 1x Antenna
- 1x Cable
- 1x Pin header
