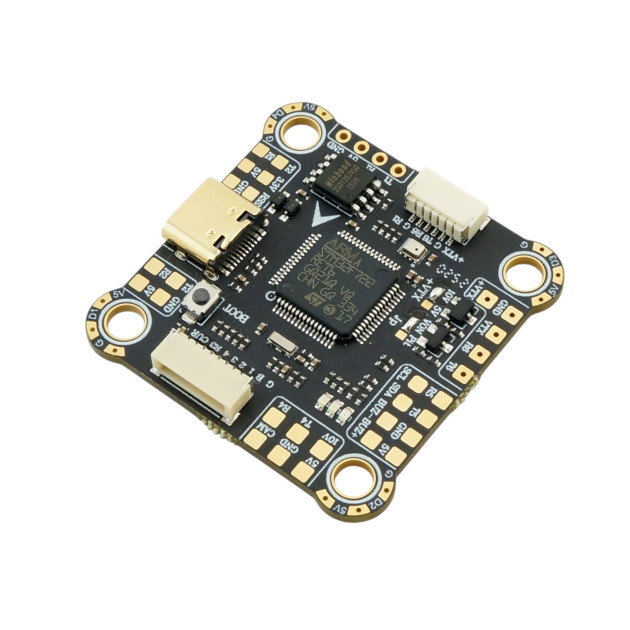

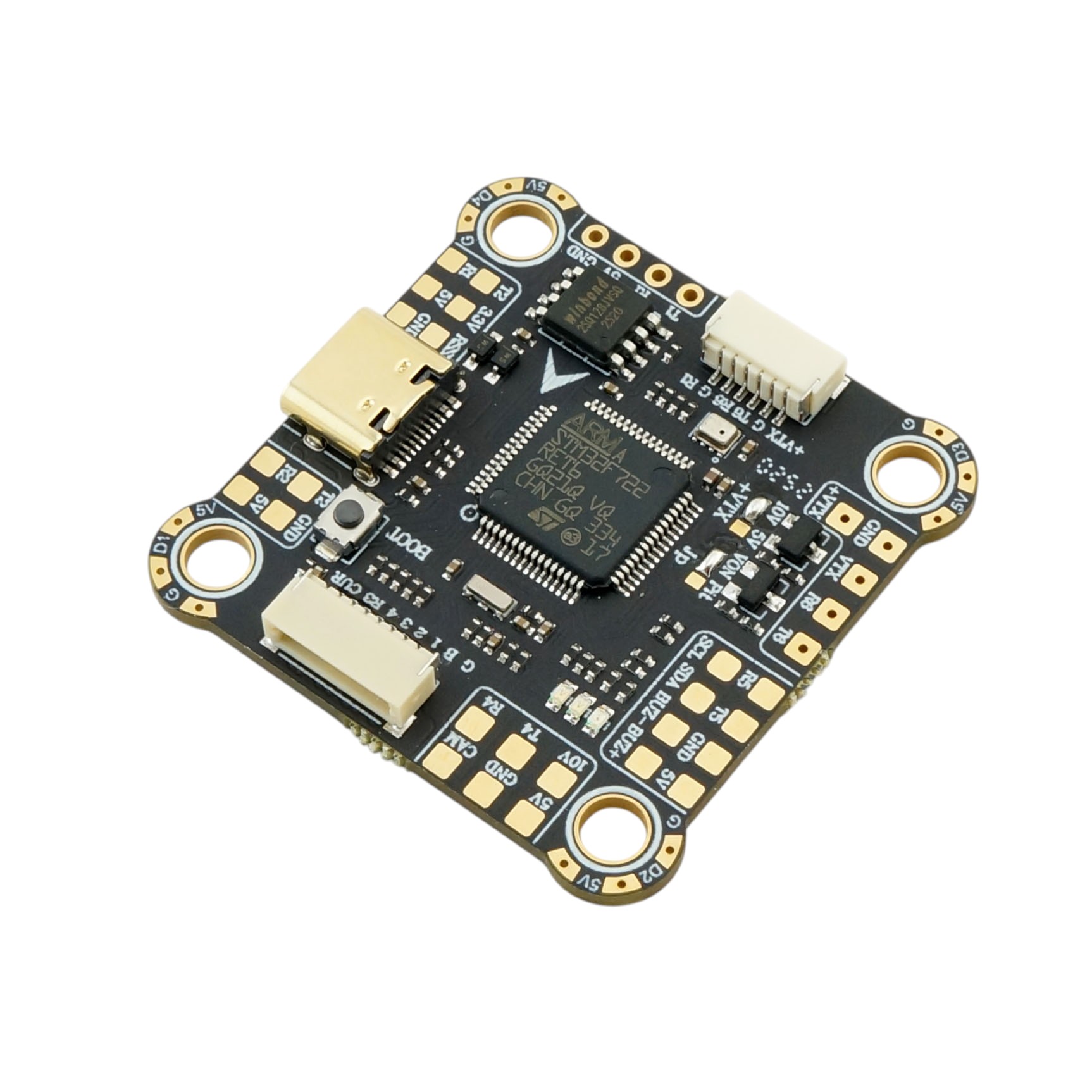

Skystars F722 HD is a flight controller with a fast F7 processor. The fifth generation uses gyro ICM42688P, has 16MB memory for blackbox and 5V/3A and 10V/3A BEC. The unit also features a connector for DJI FPV and OSD, making it easy to use on drones with both digital and analog video transmission. It also has pads for connecting LEDs in the corners of the unit. An integrated barometer for altitude measurement is also useful. The power for the VTX can be switched on/off via the flight controller using a switch on the transmitter. This is handy if you are waiting for GPS satellites and do not want the video transmitter to overheat unnecessarily.
The board supports Betaflight firmware (SKYSTARSF722Pro) and iNav (SKYSTARSF722HD).
Key Features
- Power supply: 3-6S
- Processor: STM32F722RGT6
- IMU: ICM42688P
- Blackbox: 16MB
- BEC: 5V@3A, 10V@3A
- Connector for DJI FPV
- Barometer: BMP280
- Number of UARTs: 6
- Number of PWM outputs: 4
- I2C: Yes
- Mounting holes: 30.5x30.5mm M3 (with softmount)
Package Includes
- 1x Flight controller
- 1x Accessory kit
