Skystars F7 Pro3 + AM60 AM32

€ 106,19
122.59 -13% OFF!

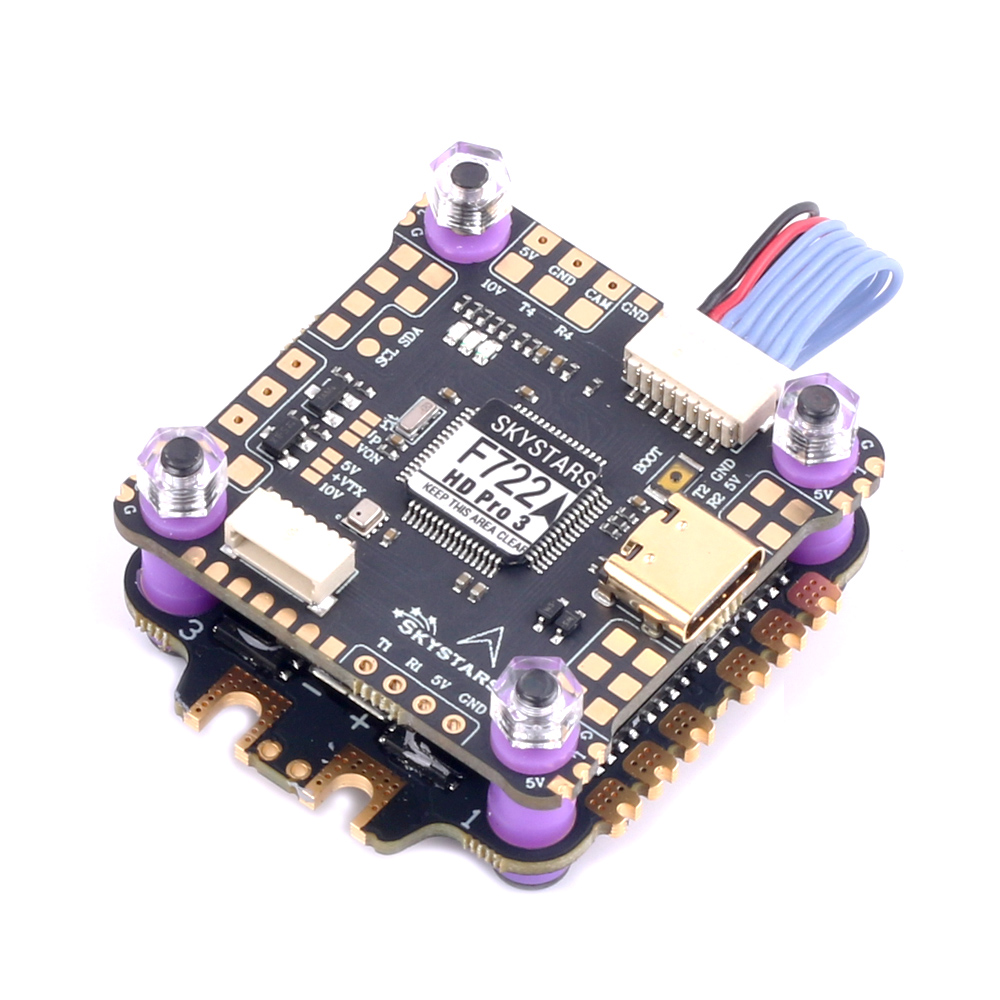

The Skystars F7+AM60 is a powerful stack for freestyle and racing copters.The controller with modern F7 processor has 8MB of blackbox memory and both 5V/3A and 10V/3A BEC. The board also has a connector for both DJI FPV and OSD connections, so it can be conveniently used on drones with both digital and analog video transmission. The pads for connecting the LEDs in the corners of the unit are also nice. The integrated barometer for altitude measurement also comes in handy.

The AM60 ESC uses the 32-bit AlkaMotors AM_32 firmware, which is considered by many to be the best current firmware for ESCs. The base of the ESC is a 6 layer PCB with 3oz thick copper. This allows the ESC to convert even high currents. Large 5x6mm 40V Toshiba Mosfets are used. For better cooling, the regulator is equipped with an aluminum heat sink. Also included is a capacitor to be connected to the battery leads on the ESC.

Wiring diagram

Key Features

  • Power supply: 3-6S
  • Processor: STM32F722RGT6
  • IMU: BMI270
  • Blackbox: 8MB
  • Integrated barometer
  • BEC: 5V@3A, 10V@3A
  • Connector for DJI FPV
  • Mounting holes: 30.5x30.5mm M3 (with softmount)
  • Current sensor
  • ESC FW: AM32

Package Includes

  • 1x Flight controller
  • 1x ESC
  • 1x Accessory Kit
