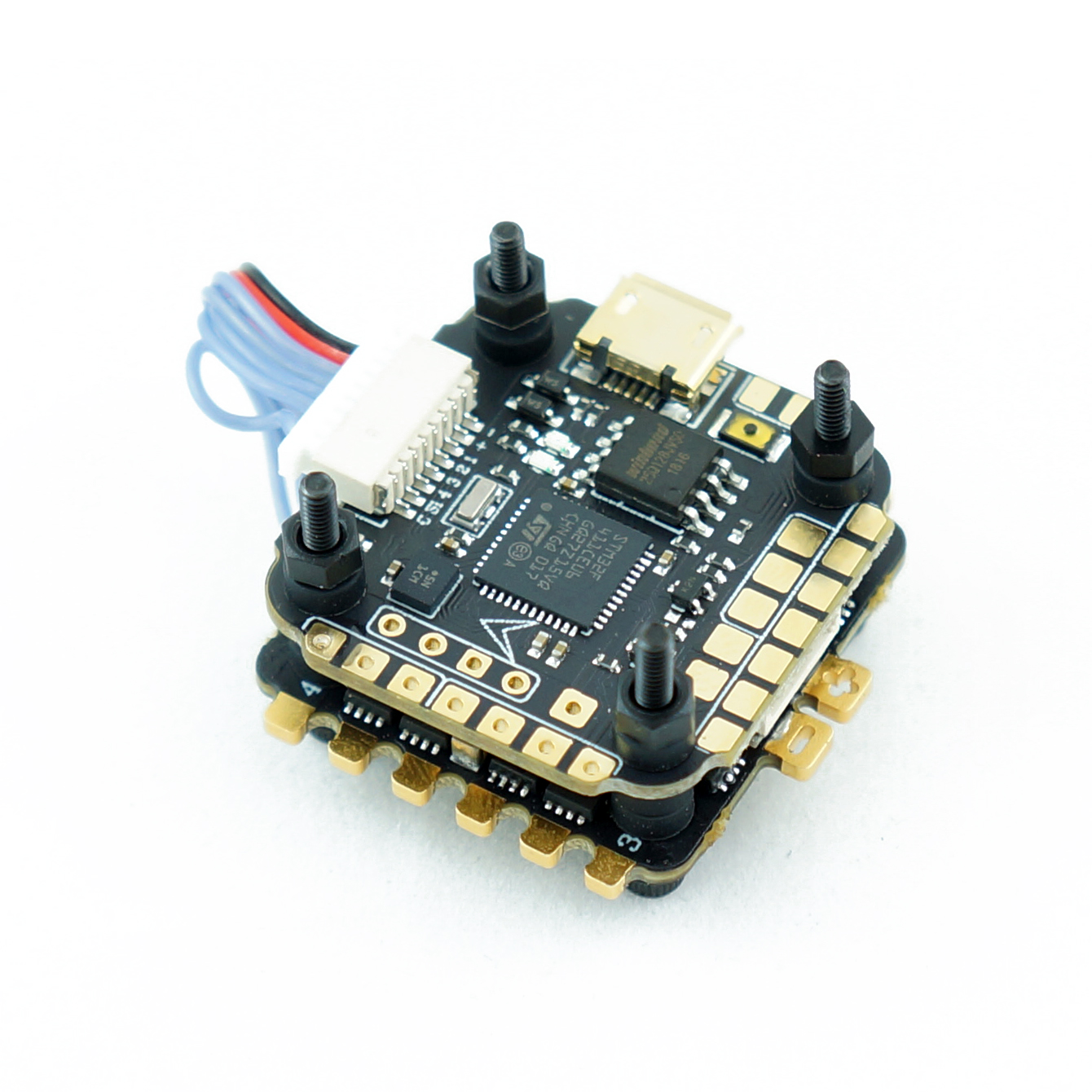

A small 20x20mm stack at an affordable price. The basis is a FC with an F411 processor. FC has large soldering pads for easier construction, 5V 2A BEC, OSD, connector for easy connection of DJI FPV and 16MB Blackbox. The ESCs use BlHeli_S firmware, includes a current sensor and can handle a maximum current of 25A. It is mainly suitable for 2-4" drones. The stack can be powered by a 3-6S Lipo battery. The mounting holes are 20x20mm M2.
Key Features
- Input voltage: 3-6S
- MCU: STM32F411
- Gyro: BMI270
- BEC: 5V@2A
- Blackbox: 16MB
- ESC Firmware: BlHeli_S
- Mounting holes: 20x20mm M2
Package Includes
- 1x FC
- 1x ESC
- 1x XT60 connector with cable
- 1x Condenser
- 1x Set of screws
