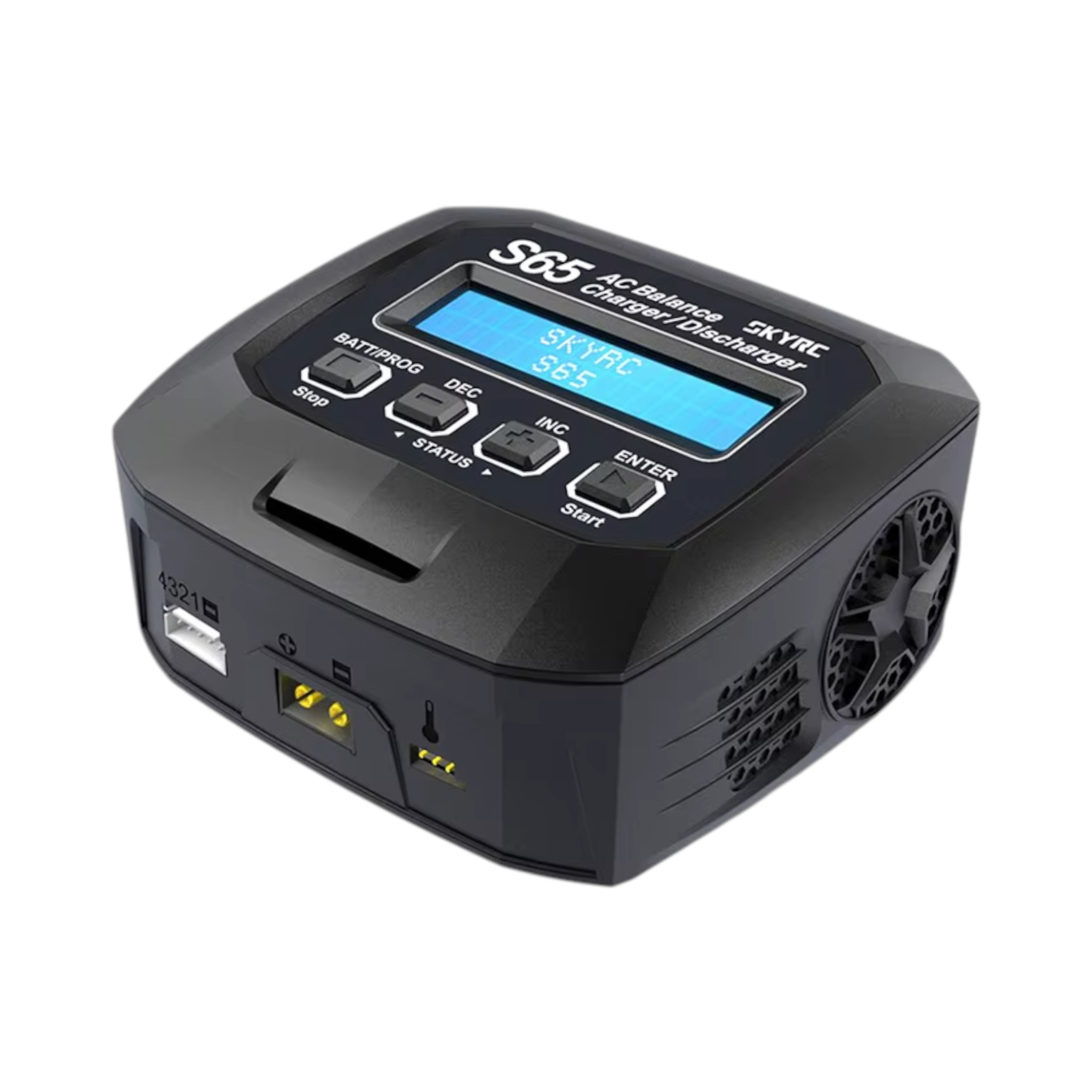

SkyRC S65 is a compact charger with a power of up to 65W and an integrated power supply, allowing you to power directly from the mains. It can charge 2-4S LiPo, LiHV, LiFe and Li-ion, 6-8S NiMH and NiCd, and lead batteries 6–12V. The charging current is adjustable in the range of 0.1–6A. Discharging is possible with a power of up to 10W at a current of 0.1–2A.
The charger supports balance, storage, and discharge modes. The output connector XT60 and the JST-XH socket allow direct connection of batteries without adapters. The input for an optional temperature sensor (sold separately) allows for stopping the charging when the set temperature is exceeded. All parameters are displayed on a dual-line backlit LCD screen. Cooling is ensured by a built-in fan.
Key Features
- Input voltage: 100–240V AC, 50/60Hz (integrated power supply)
- Charging power: up to 65W
- Charging current: 0.1–6A
- Discharging power: up to 10W
- Discharging current: 0.1–2A
- Number of channels: 1
- Supported batteries: LiPo/LiHV/LiFe/Li-ion: 2–4S, NiMH/NiCd: 6–8S, Pb: 6–12V (3–6 cells), including AGM
- Balancer current: 200mA
- Charging modes Li: fast charging, with balancer, storage
- Memory: 10 programs
- Display: dual-line backlit LCD
- Output connectors: XT60 + JST-XH
- Protection: reverse polarity, short circuit, overheating, timer, capacity, temperature
- Dimensions: 117×105×55mm
- Weight: 315g
User Guides
Package Includes
- 1x SkyRC S65 charger
- 1x Power cable
