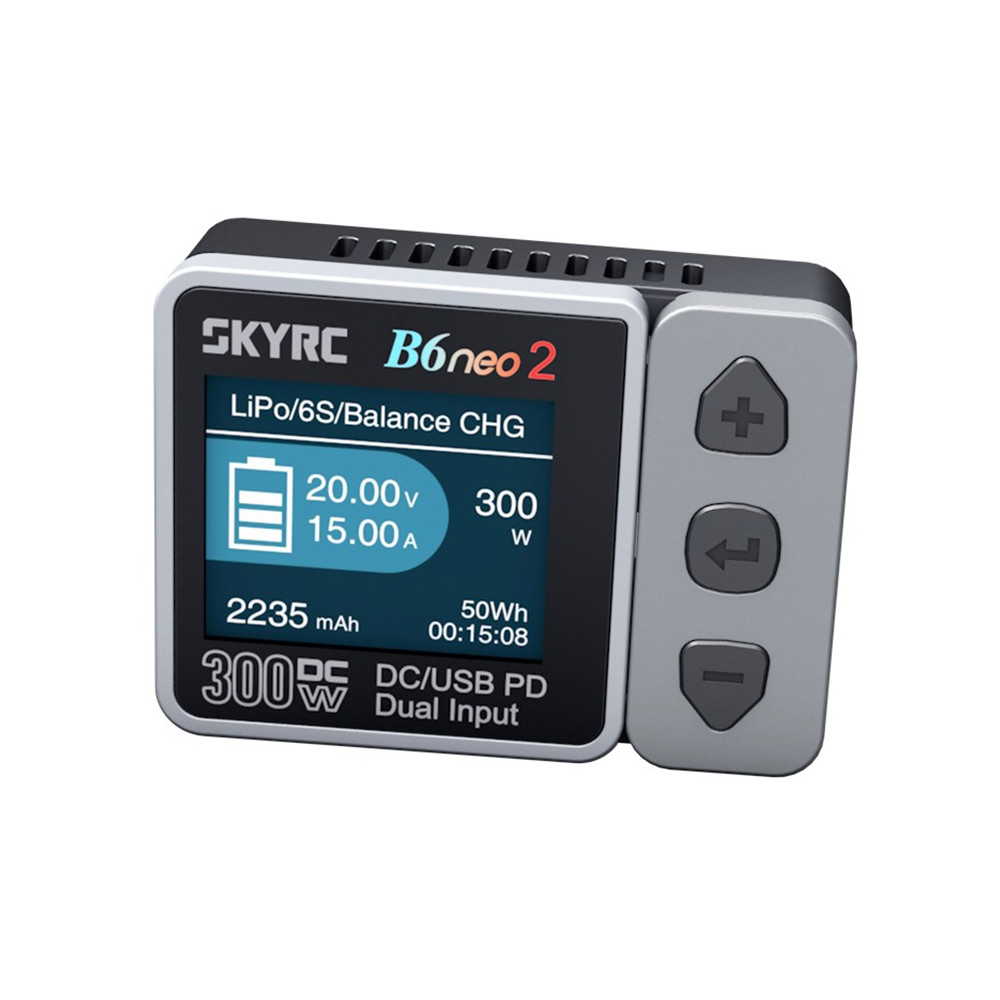

SkyRC B6neo 2 is a compact and powerful LiPo battery charger. The charger is without an integrated DC power supply. This allows it to maintain a small size and high power.
The charger needs to be powered through a XT60 connector from an external power source or battery. The supported voltage range is 10-28V. In this mode, the charger can charge with a power of up to 300W. Another option is to power the charger via a USB-C connector from sources that support PD3.0/QC (12-20V, 5A). The maximum charging power in this case is 80W.
The charger supports all common battery types and can charge with a current of up to 15A (considering the max. power 300/80W). The charger can also be switched to a regulated DC power supply mode with adjustable current and voltage. The charger can also discharge batteries. When using only the XT60 connector, the discharge power is 10W. When combining the XT60 connector with the balancer, the discharge power can be up to 24W. Active cooling is provided by an integrated fan. All charging information is displayed on a 1.77" screen.
SkyRC B6neo 2 can be connected to a PC for firmware updates.
Key Features
- Size: 70x50x32mm
- Weight: 82g
- Display: TN 1.77" 128x160px
- XT60 input voltage: 10-28V DC
- USB-C input: PD3.0/QC 12-20V 5A max
- Charging power: 300W (XT60 input) / 80W (USB-C input)
- Charging current: 0.1-15A
- Balancer current: up to 550mA
- Discharge power: up to 24W (XT60 + 6S Balancer)
- Discharge current: 0.1-2A
- Supported batteries: LiPo/LiFe/LiHV/Li-ion (1-6S), NiMH/NiCd (1-15S), Pb (3S/6S)
Package Includes
- 1x Charger
