SEQURE E70 G1 is a powerful 4-in-1 ESC suitable for racing and freestyle drones. The ESC handles a continuous current of 70A per channel and supports 2-8S LiPo batteries. Control is handled by a 32-bit STM32G071 processor with modern AM32 firmware, which supports adjustable PWM frequency and telemetry that provides the flight controller with information about ESC temperature, motor RPM, and battery voltage.

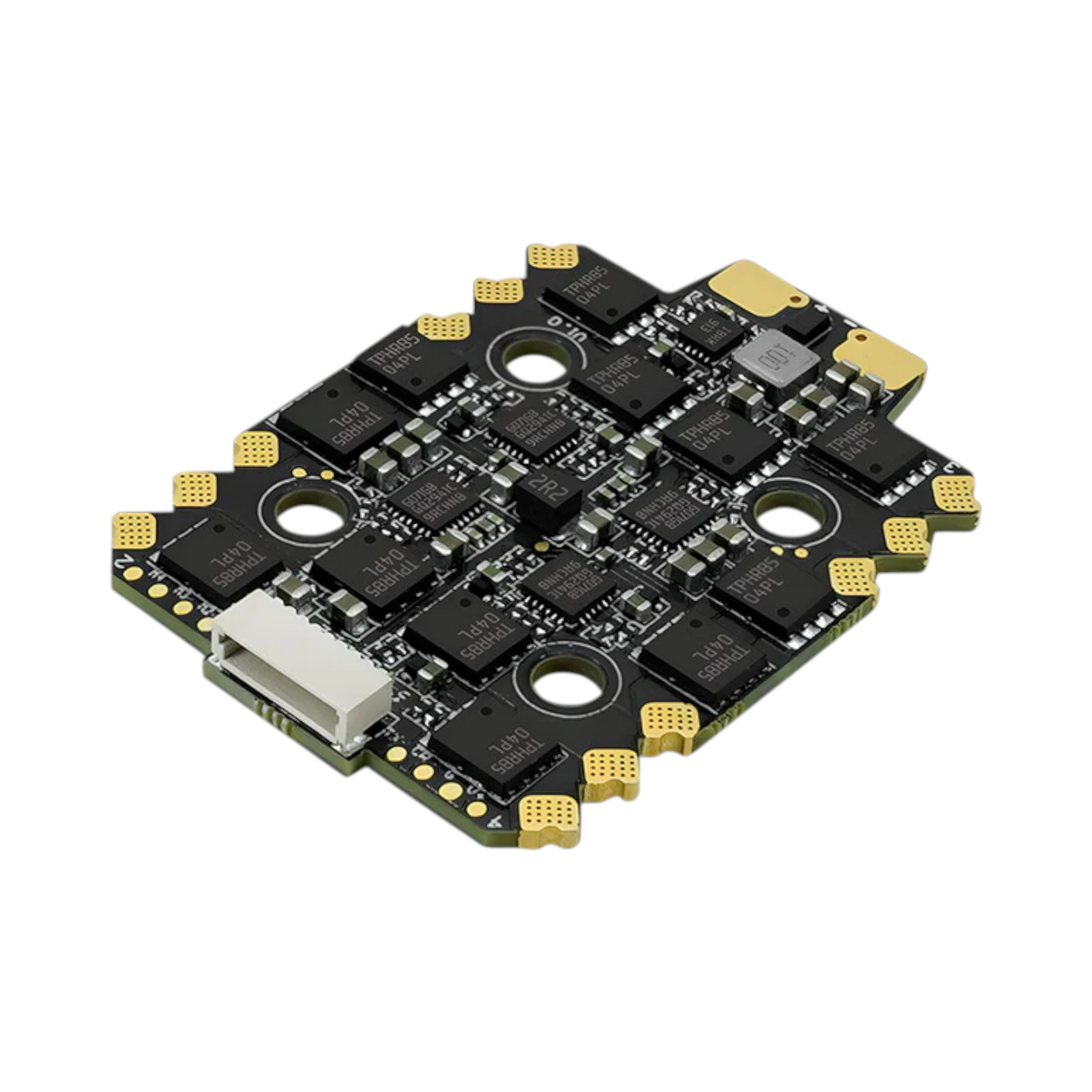

Powerful MOSFETs and a multilayer PCB with a thick copper layer ensure efficient heat dissipation and high current handling. The motor solder pads are angled, making it easier to solder the motor wires. Mounting holes with 20x20mm spacing (Φ4mm/M3) allow installation in standard frames. The ESC weighs only 15,8g.
Key Features
- Processor: STM32G071
- Firmware: AM32
- Input voltage: 2-8S LiPo/LiHV
- Current: 70A
- Input protocol: DShot600/300/150, Oneshot, Multishot, PWM
- Telemetry: Yes
- Current sensor: Yes
- Mounting holes: 20x20mm (Φ4mm/M3)
- Size: 50,5x36x6mm
- Weight: 15,8g
User Guides
Package Includes
- 1x ESC
- 1x SH1.0-8P 30AWG 40mm cable (reverse double-sided)
- 1x SH1.0-8P 30AWG 60mm cable (single-sided)
- 2x 12AWG power cable 100mm
- 1x XT60H-M connector
- 1x 680uF/35V capacitor
- 5x M3*8mm softmount
- 5x M3*4.5mm softmount
