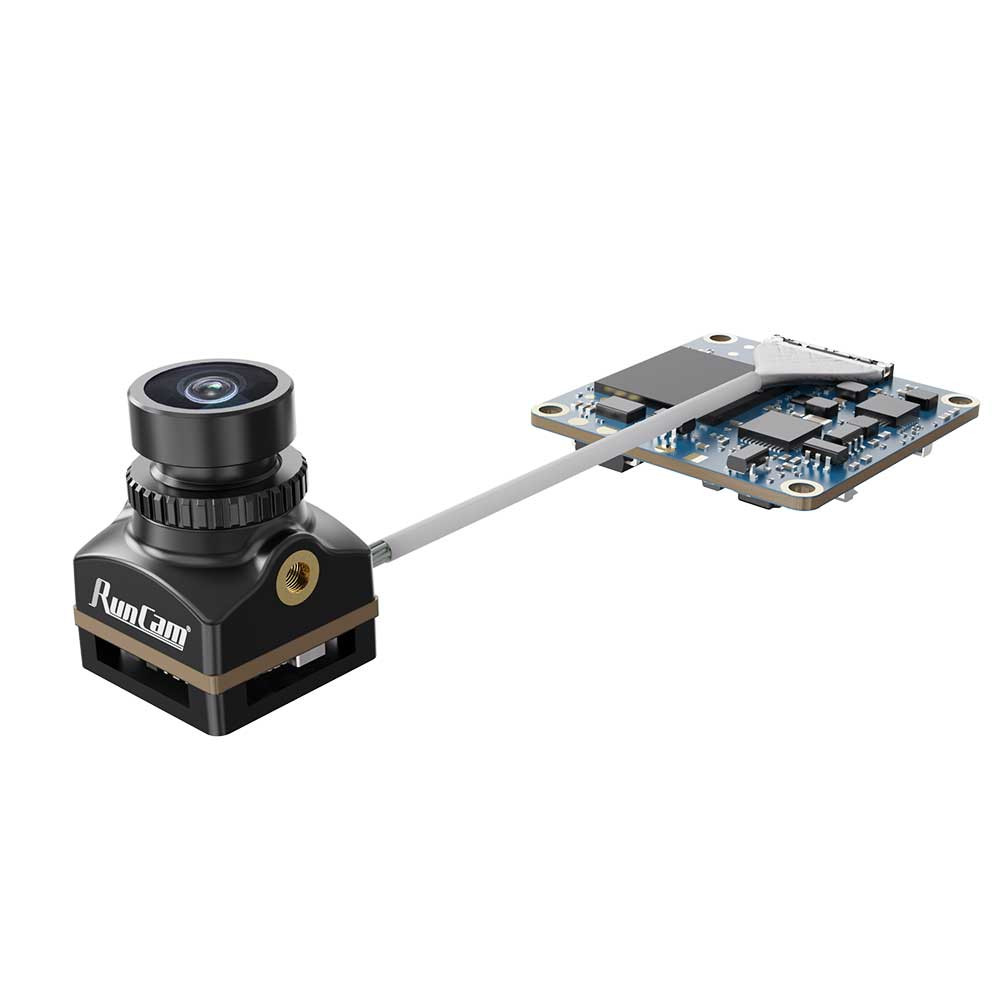

Runcam Split 4 is a hybrid camera that serves both for FPV and for recording up to 4K. Split 4 uses a Nano-sized camera and a main board with a 25.5x25.5mm mounting pattern. The camera is therefore intended primarily for use on Whoops and Toothpicks. The camera can record up to 4K@30fps or 2.7K@60fps. Compared to other hybrid 4K cameras, Split 4 uses only one chip. This results in latency of around 55ms, but a significant weight reduction to just 10.2g. The camera has an integrated gyro, which makes it possible to stabilize the recorded footage. The camera input voltage is 5-20V; however, the camera must be powered via a BEC. Voltage spikes on the main power supply can permanently destroy the camera.
English manual download here.
Key Features
- Sensor: Sony 13MP
- FOV: 140°
- Resolution: 4K@30fps / 2.7K@60fps / 2.7K@50fps / 1080p@60fps
- Standard: PAL/NTSC switchable
- Aspect ratio: 4:3/16:9 switchable
- SD card: up to 128GB U3
- Input voltage: 5-20V
- Power consumption: 450mA@5V
- Weight: 10.2g
User Guides
Package Includes
- 1x Camera
- 1x Nano to Micro adapter
- 1x Cable
- 1x Screw set
