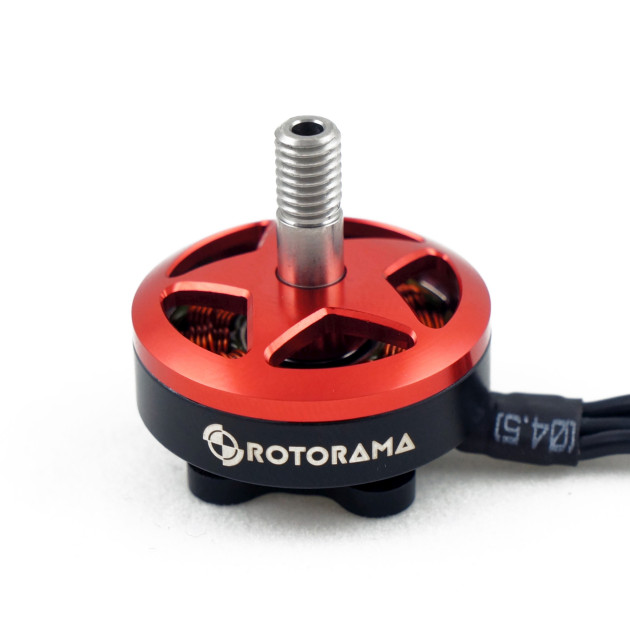

Rotorama Katana 2204 2700kv

Discontinued
€ 15,29

Motors sharp as a razor and light as a feather. Rotorama Katana 2204 2700KV are designed specifically for lightweight 5" copters such as the Rotorama Samurai . With appropriate components, the power-to-weight ration of 12:1 can be achieved. The motors reach the static thrust of about 1050 g at 30 A and the own weight of only 20.2 g

The Rotorama Samurai frame, together with the Katana motors, provides a new level of fund - the copter has minimal inertia and performs unbeatably in turns.

The Katana has been tailored for lightweight three-blade and heavier two-blade five-inch propellers. These combinations are ideal:

  • HQ 5x4x3 and battery 4S 850mAh - 1300mAh: maximum thrust approx. 1000g
  • HQ 5x4.3x3 and battery 4S 1000mAh - 1500mAh: maximum thrust approx. 1050g
  • Gemfan Flash 5152-2 and battery 4S 1000mAh - 1500mAh: maximum thrust approx. 940g
  • RaceKraft 5038 DCS and battery 4S 850mAh - 1000mAh: maximum thrust approx 730g

The Katana motors are made from the highest quality components in one of the best electric motor factories.

Key Features

  • configuration: 12N14P
  • recommended battery: 3-4S
  • magney: N52H arc magnet
  • supply cable: 20AWG
  • shaft: hollow shaft made of titanium alloy
  • stator: 0.2mm Kawasaki silicon steel
  • bearings: Japan NSK 3 x 8 x 4mm (693ZZ)
  • base and rotor material: Al 7075
  • Weight: 20.2g with shortened cables

Package Includes

  • 1x motor
  • 4x screw
