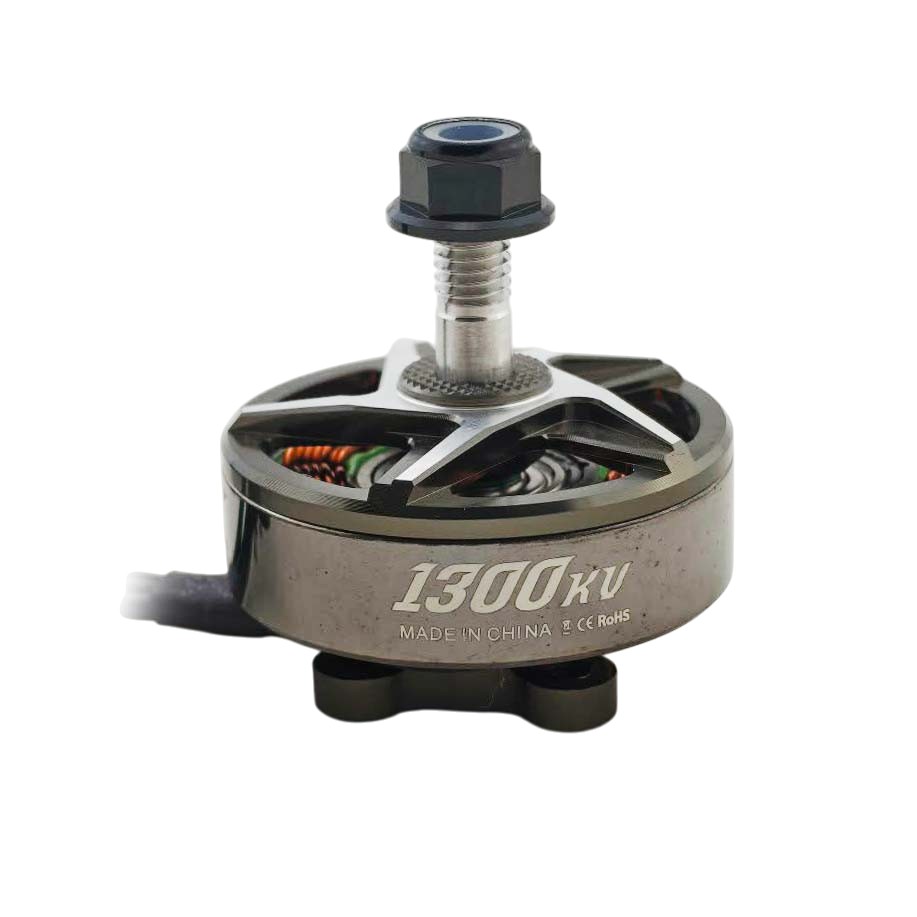

RCinpower EX2807 1300Kv is an affordable motor suitable for 6-7" propellers and 4-6S LiPo batteries. It is suitable, for example, for 7" long-range drones.
The 28x7mm stator with 12N14P configuration delivers up to 2.48kg of thrust at 24V with a Gemfan 7040 tri-blade propeller, drawing 36.8A and producing 883W of power. With a Gemfan 6042 bi-blade propeller, it delivers 1.88kg at 34.8A, and the motor heats up to only 63°C at full throttle. The motor reaches its highest efficiency, over 82%, in the 2-6A range, making it well suited for long flights at lower throttle.

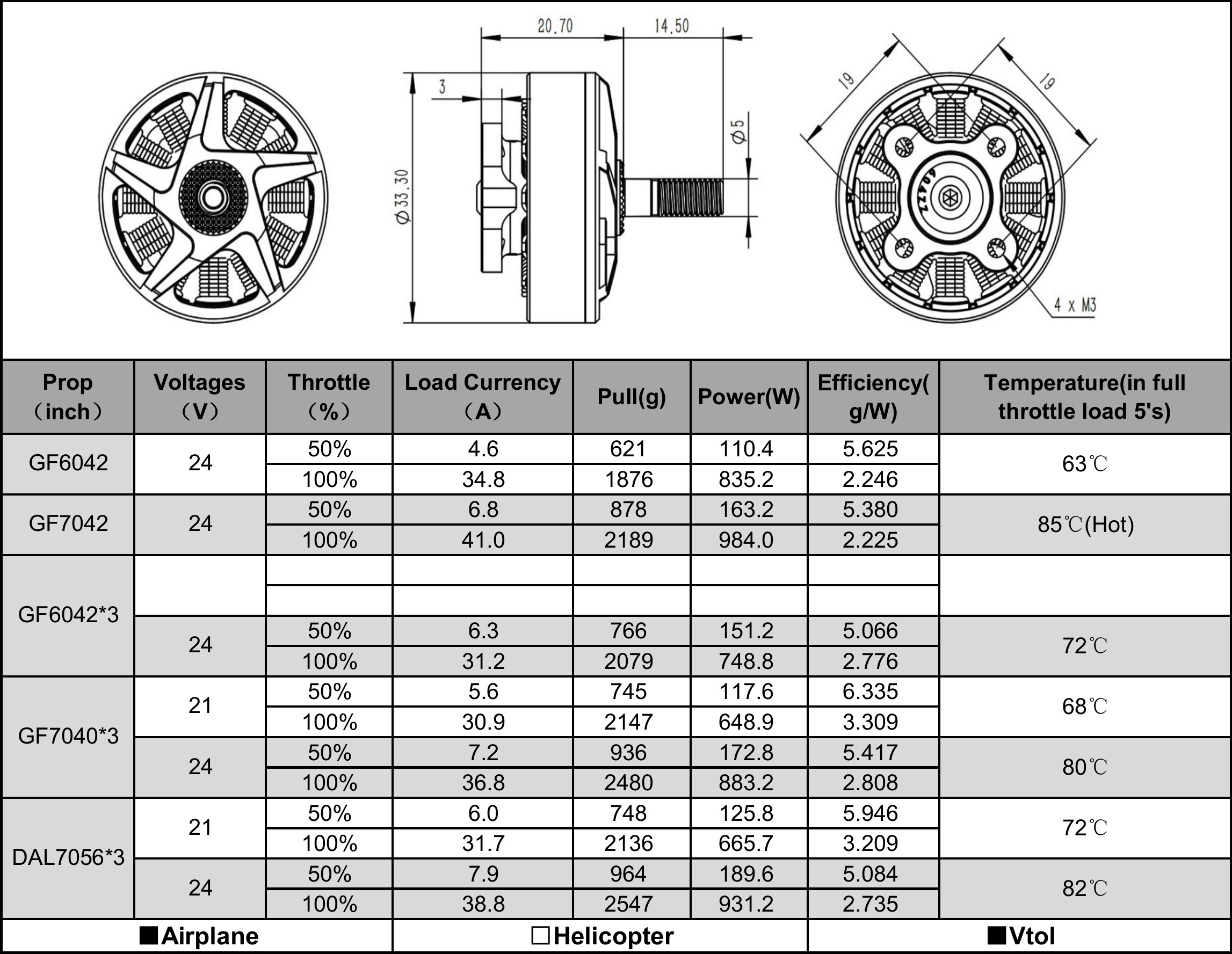

The motor has a hollow shaft with an M5 thread and M3 19x19mm mounting holes. With a diameter of 34.3mm, it weighs 48 grams including 3cm cables. Since the motor draws up to 41A at full throttle, we recommend ESCs with a continuous current rating of at least 45A.
Key Features
- Size: 2807
- Kv: 1300
- Configuration: 12N14P
- Mounting holes: 19x19mm M3
- Shaft: M5 (hollow)
- Weight: 48g (with 3cm cables)
- Dimensions: φ34.3x32.9mm
- Stator: 28x7mm
- Battery: 4-6S
- Max. current: 41A
- Max. continuous power: 984W
- Max. thrust: 2.55kg (24V, 7" tri-blade propeller)
- Internal resistance: 62mΩ
- No-load current: 1.2A (10V)
Package Includes
- 1x Motor
- 1x Screw set
