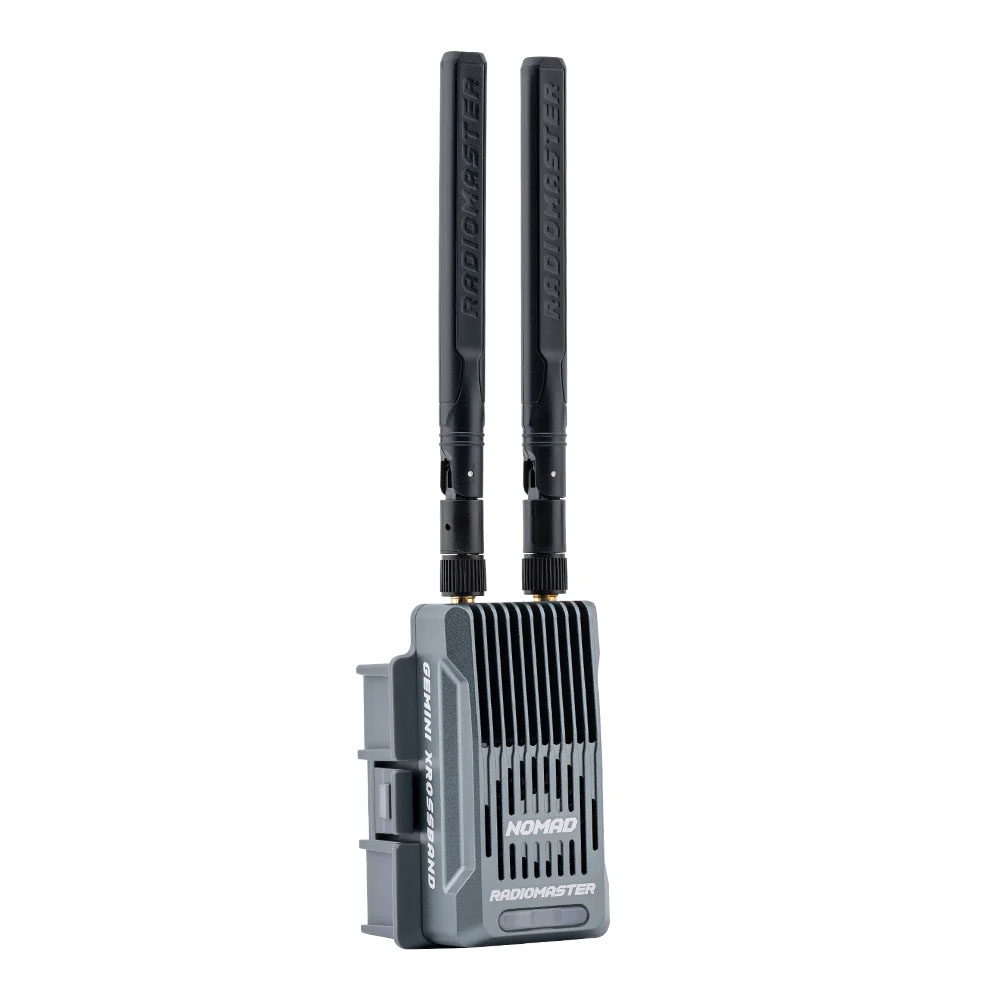

Radiomaster Nomad ELRS 868MHz/2.4GHz Gemini Xross

On the way
Watch availability
€ 50,49

Radiomaster Nomad is an advanced dual-band ELRS module. The Radiomaster Nomad module contains two transmitter chips, each capable of 2.4GHz or 868/915MHz. Thus, you can operate the module in Gemini mode at 2.4GHz or 915MHz, or you can use XROSSBAND mode, where one transmitting chip transmits at 2.4GHz and the other at 868/915MHz (the function must be supported by the receiver at the same time). The Radiomaster Nomad will thus provide high immunity to interference. It can also be used with conventional ELRS receivers that operate with one antenna on one frequency.

Radiomaster Nomad is equipped with two dual-band antennas. The maximum transmit power is up to 1W. The module is encapsulated in aluminum with active cooling. An adapter can then be attached to the aluminum body for use with a large JR shaft or a smaller Nano shaft. Like other ELRS transmitters, the Radiomaster Nomad supports connectivity via Bluetooth and Wi-Fi. The bottom of the module features an XT30 connector for possible external power supply as well as a USB-C connector.

Key Features

  • Frequency Band: 2.4GHz / 900MHz
  • MCU: ESP32 (main), ESP32c3 (backpack)
  • RF Chip: 2x Semtech LR1121
  • Transmit Power: Up to 1000mW
  • WiFi support
  • Bluetooth support
  • Input voltage of XT30: 6-16.8V
  • Weight: 87.2g (including antennas)
  • Size: 80x45x40mm
  • Shaft: JR and Nano

Package Includes

  • 1x Transmitter module
  • 1x Back for JR shaft
  • 1x Back for Nano shaft
  • 2x Antenna
