€ 66,99

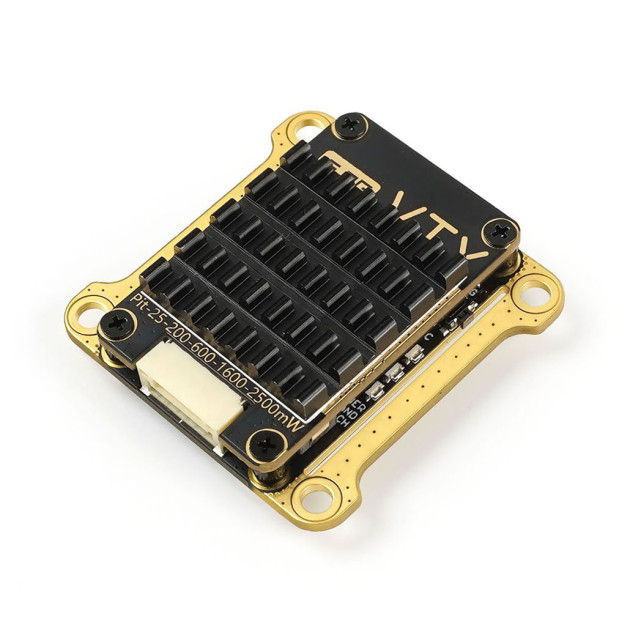

GEPRC RAD VTX 5.8G 2.5W is an analog video transmitter designed primarily for freestyle and long-range drones. The video transmitter has 30.5x30.5mm mounting holes and can be mounted in a stack. It is equipped with a heat sink on both sides for good heat dissipation. The GEPRC RAD VTX can be controlled via push button or via the controller using the IRC Tramp protocol. Power can be supplied directly from a 2-8S Lipo battery. The transmitter is equipped with a microphone for audio transmission, a 5V BEC to power the camera as well as a circuit to protect it against overheating.

Key Features

  • Input voltage: 7-36V (2-8S)
  • BEC: 5V@600mA
  • Protocol: IRC Tramp
  • Antenna connector: MMCX
  • Cable connector: GH 1.25-6P
  • Output power: 25/200/600/1600/2500mW
  • Built-in microphone
  • Mounting holes: 30.5x30.5mm M3
  • Size: 36.5x36.5x12mm
  • Weight: 15g

Package Includes

  • 1x Video Transmitter
  • 1x MMCX Linear Antenna
  • 1x SMA Pigtail
  • 1x Cable
